APT1211A
Panasonic

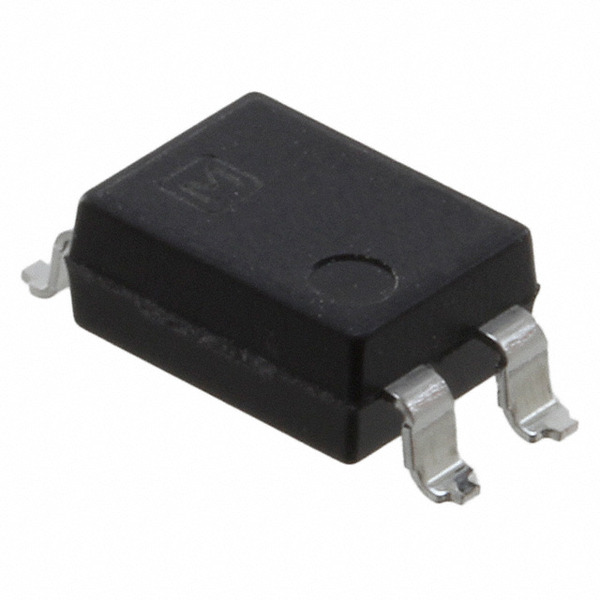

Images are for reference only.
See Product Specifications for product details.
Buy APT1211A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APT1211A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APT1211A |
|---|---|
| Manufacturer | Panasonic |
| Description | APT Series Single Channel 600 V 3750 Vrms Phototriac Coupler SMD-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.859 | $0.775 | $0.699 | $0.684 | ||
Specifications
Data sheet
| Zero Crossing Circuit: | Yes |
|---|---|
| Voltage - Off State: | 600V |
| Voltage - Isolation: | 5000Vrms |
| Voltage - Forward (Vf) (Typ): | 1.21V |
| Turn On Time: | 100µs (Max) |
| Supplier Device Package: | 4-SMD |
| Static dV/dt (Min): | 500V/µs |
| Series: | APT |
| Packaging: | Tube |
| Package / Case: | 4-SMD, Gull Wing |
| Output Type: | Triac |
| Other Names: | 255-1517 255-1517-5 255-1517-ND |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | Optoisolator Triac Output 5000Vrms 1 Channel 4-SMD |
| Current - On State (It (RMS)) (Max): | 100mA |
| Current - LED Trigger (Ift) (Max): | 10mA |
| Current - Hold (Ih): | 3.5mA |
| Current - DC Forward (If) (Max): | 50mA |
| Approvals: | cUR, VDE |
| Email: | info@cjjhk.com |
Introduce
We can supply APT1211A, use the request quote form to request APT1211A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT1211A.The price and lead time for APT1211A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT1211A.We look forward to working with you to establish long-term relations of cooperation
