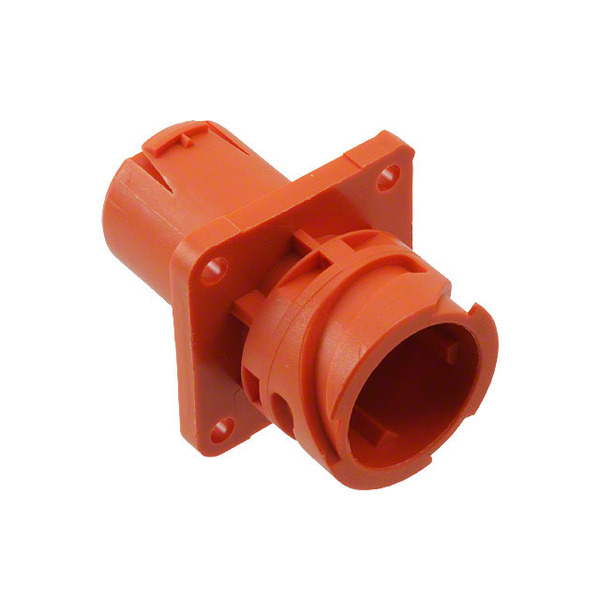

APD-59AP-HV
Cannon
Images are for reference only.
See Product Specifications for product details.
Buy APD-59AP-HV with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APD-59AP-HV with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APD-59AP-HV |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT HSNG MALE 4POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $11.09 | $10.08 | $8.568 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $7.812 | $7.308 | $6.703 | |||
Specifications
Data sheet
| Type: | For Male Pins |
|---|---|
| Shielding: | Unshielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | - |
| Shell Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish: | - |
| Series: | APD 4-Way |
| Packaging: | Bulk |
| Other Names: | 1003-2088 121583-0215 1215830215 |
| Orientation: | 5 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Positions: | 4 |
| Note: | Contacts Not Included |
| Mounting Type: | Panel Mount |
| Mounting Feature: | Flange |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection: | IP67/69K - Dust Tight, Water Resistant, Waterproof |
| Includes: | - |
| Housing Color: | Orange |
| Features: | - |
| Fastening Type: | Bayonet Lock |
| Detailed Description: | 4 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating: | - |
| Coupling Nut Diameter: | - |
| Contact Type: | Crimp |
| Contact Size: | 2.5mm |
| Contact Shape: | Circular |
| Connector Type: | Receptacle Housing |
| Email: | info@cjjhk.com |
Introduce
We can supply APD-59AP-HV, use the request quote form to request APD-59AP-HV pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APD-59AP-HV.The price and lead time for APD-59AP-HV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APD-59AP-HV.We look forward to working with you to establish long-term relations of cooperation
