ANT025020LCT1575MA1
TDK Corporation

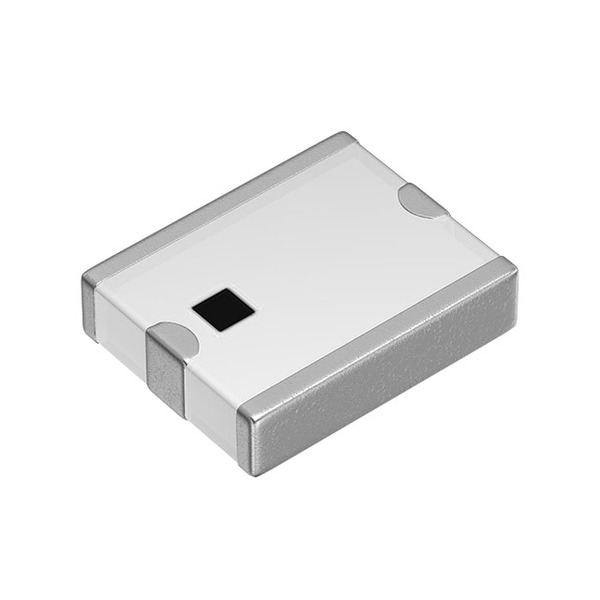

Images are for reference only.
See Product Specifications for product details.
Buy ANT025020LCT1575MA1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ANT025020LCT1575MA1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ANT025020LCT1575MA1 |
|---|---|
| Manufacturer | TDK |
| Description | Chip Antennas, Pass Band1=1574 to 1577MHz; Pass Band2=2400 to 2484MHz; Pass Band3=5150 to 5850MHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.362 | $0.326 | $0.294 | $0.288 | ||
Specifications
Data sheet
| VSWR: | 1.3, 1.8, 2.4 |
|---|---|
| Termination: | Solder |
| Series: | - |
| Return Loss: | - |
| Packaging: | Cut Tape (CT) |
| Other Names: | 495-75561-1 |
| Number of Bands: | 3 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.024" (0.60mm) |
| Gain: | - |
| Frequency Range: | 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz |
| Frequency Group: | Wide Band |
| Frequency (Center/Band): | 1.575GHz, 2.4GHz, 5.5GHz |
| Features: | - |
| Detailed Description: | 1.575GHz, 2.4GHz, 5.5GHz Chip RF Antenna 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz Solder Surface Mount |
| Applications: | - |
| Antenna Type: | Chip |
| Email: | info@cjjhk.com |
Introduce
We can supply ANT025020LCT1575MA1, use the request quote form to request ANT025020LCT1575MA1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ANT025020LCT1575MA1.The price and lead time for ANT025020LCT1575MA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ANT025020LCT1575MA1.We look forward to working with you to establish long-term relations of cooperation
