AN44075A-VF
Panasonic

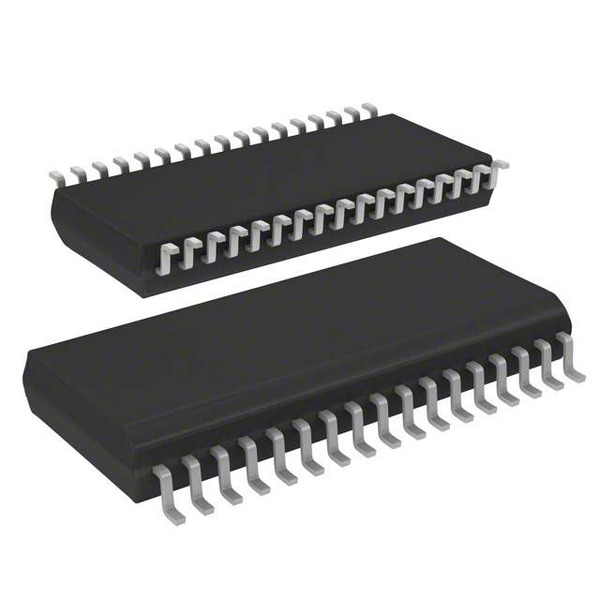

Images are for reference only.
See Product Specifications for product details.
Buy AN44075A-VF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AN44075A-VF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AN44075A-VF |
|---|---|
| Manufacturer | Panasonic |
| Description | AN44075A Series 35 V 3 A Surface Mount Driver IC for DC Motor HSOP-34 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.978 | $1.785 | $1.61 | $1.575 | ||
Specifications
Data sheet
| Voltage - Supply: | 10 V ~ 35 V |
|---|---|
| Voltage - Load: | 10 V ~ 35 V |
| Technology: | BiCDMOS |
| Supplier Device Package: | 34-HSOP |
| Step Resolution: | - |
| Series: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 34-TSOP (0.240", 6.10mm Width) Exposed Pad |
| Output Configuration: | Half Bridge (2) |
| Other Names: | AN44075A-VFCT AN44075AVF |
| Operating Temperature: | -20°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushed DC |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Parallel |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description: | Motor Driver BiCDMOS Parallel 34-HSOP |
| Current - Output: | 3A |
| Base Part Number: | AN44075A |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply AN44075A-VF, use the request quote form to request AN44075A-VF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AN44075A-VF.The price and lead time for AN44075A-VF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AN44075A-VF.We look forward to working with you to establish long-term relations of cooperation
