AM23ESGC
Kingbright

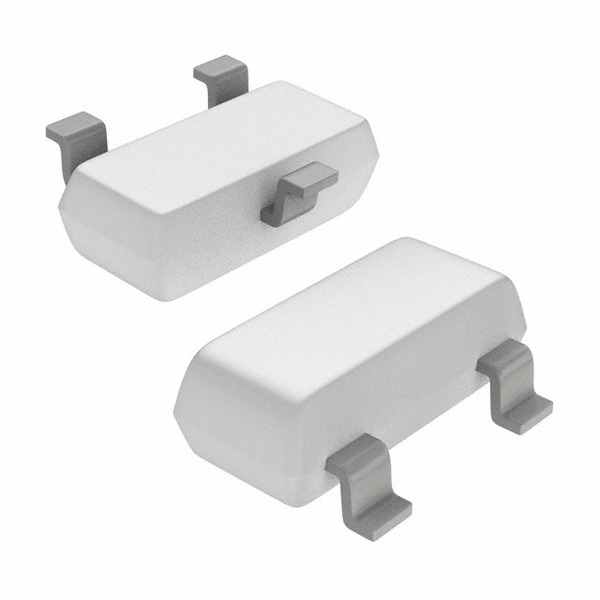

Images are for reference only.
See Product Specifications for product details.
Buy AM23ESGC with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AM23ESGC with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AM23ESGC |
|---|---|
| Manufacturer | Kingbright |
| Description | Red-Green 3 x 1.3 x 1.05 mm 140 Clear 12/10 mcd 2/2.2 V LED Lamp SMT -SOT-23-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.205 | $0.185 | $0.167 | $0.164 | ||
Specifications
Data sheet
| Wavelength - Peak: | 565nm Green, 627nm Red |
|---|---|
| Wavelength - Dominant: | 568nm Green, 617nm Red |
| Voltage - Forward (Vf) (Typ): | 2.2V Green, 2V Red |
| Viewing Angle: | 140° |
| Supplier Device Package: | SOT-23-3 |
| Size / Dimension: | 3.00mm L x 1.30mm W |
| Series: | - |
| Packaging: | Original-Reel® |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Other Names: | 754-1633-6 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Millicandela Rating: | 10mcd Green, 5mcd Red |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lens Transparency: | Clear |
| Lens Style/Size: | Rectangle with Flat Top, 3.00mm x 1.30mm |
| Lens Color: | Colorless |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 1.20mm |
| Features: | - |
| Detailed Description: | Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red TO-236-3, SC-59, SOT-23-3 |
| Current - Test: | 20mA Green, 20mA Red |
| Configuration: | Common Cathode |
| Color: | Green, Red |
| Email: | info@cjjhk.com |
Introduce
We can supply AM23ESGC, use the request quote form to request AM23ESGC pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AM23ESGC.The price and lead time for AM23ESGC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AM23ESGC.We look forward to working with you to establish long-term relations of cooperation
