ALD118
Panasonic

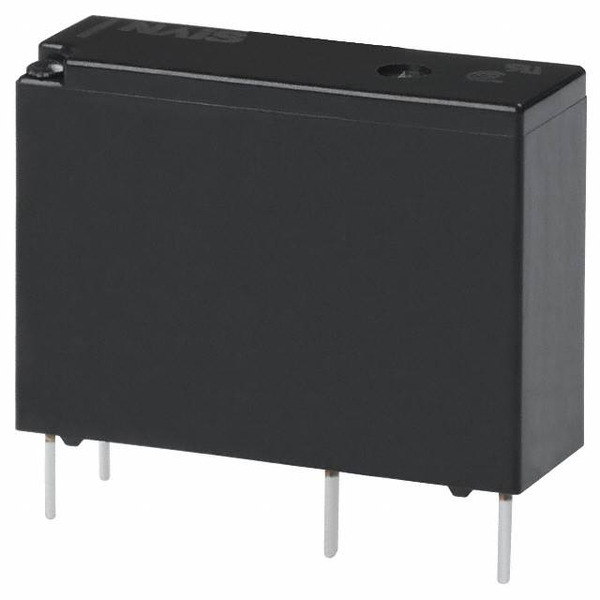

Images are for reference only.
See Product Specifications for product details.
Buy ALD118 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ALD118 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ALD118 |
|---|---|
| Manufacturer | Panasonic |
| Description | Power/Signal Relay, 1 Form A, Spst, Momentary, 0.011A (Coil), 18Vdc (Coil), 200Mw (Coil), 3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.429 | $1.29 | $1.164 | $1.139 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 13.5 VDC |
|---|---|
| Turn Off Voltage (Min): | 0.9 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 277VAC, 30VDC - Max |
| Series: | ALD |
| Release Time: | 10ms |
| Relay Type: | General Purpose |
| Packaging: | Tube |
| Other Names: | 255-2097-5 ALD118-ND |
| Operating Temperature: | -40°C ~ 70°C |
| Operate Time: | 10ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | - |
| Detailed Description: | General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole |
| Contact Rating (Current): | 3A |
| Contact Material: | Silver Nickel (AgNi) |
| Contact Form: | SPST-NO (1 Form A) |
| Coil Voltage: | 18VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 1.62 kOhms |
| Coil Power: | 200 mW |
| Coil Current: | 11.1mA |
| Email: | info@cjjhk.com |
Introduce
We can supply ALD118, use the request quote form to request ALD118 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ALD118.The price and lead time for ALD118 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ALD118.We look forward to working with you to establish long-term relations of cooperation
