AL5809-50S1-7
Diodes Incorporated

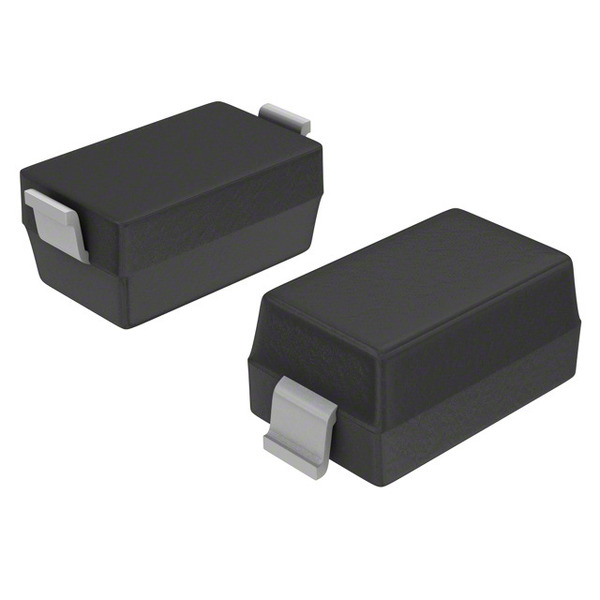

Images are for reference only.
See Product Specifications for product details.
Buy AL5809-50S1-7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AL5809-50S1-7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AL5809-50S1-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LED DRVR LIN PWM 50MA SOD123 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.174 | $0.163 | $0.152 | $0.144 | ||
Specifications
Data sheet
| Voltage - Supply (Min): | 2.5V |
|---|---|
| Voltage - Supply (Max): | 60V |
| Voltage - Output: | 60V |
| Type: | Linear |
| Topology: | - |
| Supplier Device Package: | SOD-123 |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | SOD-123 |
| Other Names: | AL5809-50S1-7DITR |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Number of Outputs: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency: | - |
| Dimming: | PWM |
| Detailed Description: | LED Driver IC 1 Output Linear PWM Dimming 50mA SOD-123 |
| Current - Output / Channel: | 50mA |
| Applications: | Signage |
| Email: | info@cjjhk.com |
Introduce
We can supply AL5809-50S1-7, use the request quote form to request AL5809-50S1-7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AL5809-50S1-7.The price and lead time for AL5809-50S1-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AL5809-50S1-7.We look forward to working with you to establish long-term relations of cooperation
