AL3050FDC-7
Diodes Incorporated

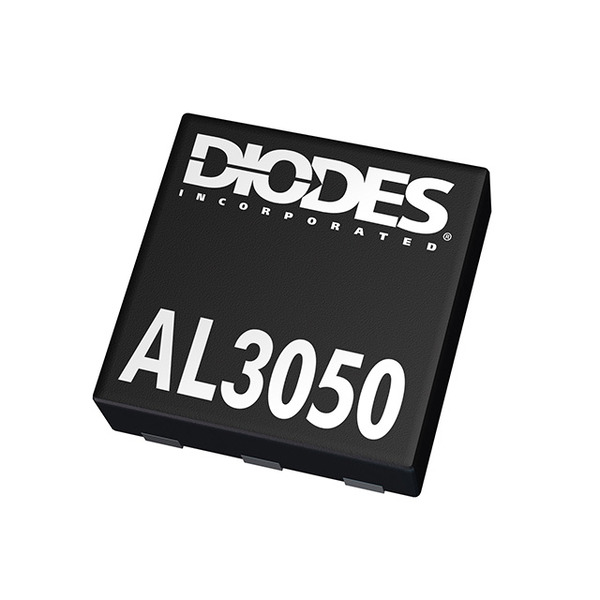

Images are for reference only.
See Product Specifications for product details.
Buy AL3050FDC-7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AL3050FDC-7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AL3050FDC-7 |
|---|---|
| Manufacturer | Diodes Inc. |
| Description | AL3050 Series 40 mA 5.5 V Single Output Surface Mount LED Driver UDFN-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.36 | $0.325 | $0.293 | $0.287 | ||
Specifications
Data sheet
| Voltage - Supply (Min): | 2.7V |
|---|---|
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 30V |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Supplier Device Package: | U-DFN2020-6 (Type S) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 6-UDFN Exposed Pad |
| Other Names: | AL3050FDC-7-ND AL3050FDC-7DITR |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Number of Outputs: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency: | 750kHz |
| Dimming: | PWM |
| Detailed Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 40mA U-DFN2020-6 (Type S) |
| Current - Output / Channel: | 40mA |
| Applications: | Backlight |
| Email: | info@cjjhk.com |
Introduce
We can supply AL3050FDC-7, use the request quote form to request AL3050FDC-7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AL3050FDC-7.The price and lead time for AL3050FDC-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AL3050FDC-7.We look forward to working with you to establish long-term relations of cooperation
