AHR1000
Hamlin / Littelfuse

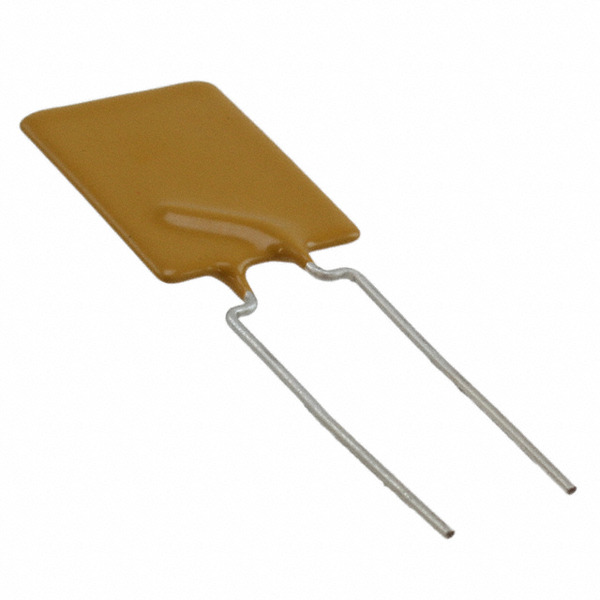

Images are for reference only.
See Product Specifications for product details.
Buy AHR1000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AHR1000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AHR1000 |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 16V 10A RADIAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Max: | 16V |
|---|---|
| Type: | Polymeric |
| Time to Trip: | 10.5s |
| Thickness (Max): | - |
| Size / Dimension: | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Series: | PolySwitch®, AHR |
| Resistance - Post Trip (R1) (Max): | 10.5 mOhms |
| Resistance - Initial (Ri) (Min): | 5.1 mOhms |
| Ratings: | AEC-Q200 |
| Packaging: | Bulk |
| Package / Case: | Radial, Disc |
| Other Names: | Q1303533 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Lead Spacing: | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Height - Seated (Max): | 1.043" (26.50mm) |
| Detailed Description: | Polymeric PTC Resettable Fuse 16V 10A Ih Through Hole Radial, Disc |
| Current - Trip (It): | 20.5A |
| Current - Max: | 100A |
| Current - Hold (Ih) (Max): | 10A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply AHR1000, use the request quote form to request AHR1000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHR1000.The price and lead time for AHR1000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHR1000.We look forward to working with you to establish long-term relations of cooperation
