AHN12012
Panasonic

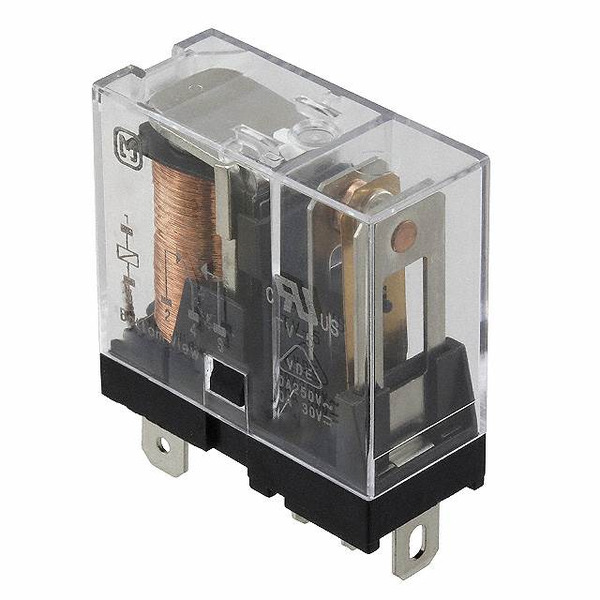

Images are for reference only.
See Product Specifications for product details.
Buy AHN12012 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AHN12012 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AHN12012 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPDT 16A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.54 | $8.01 | $7.12 | $6.764 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $6.408 | $5.696 | $5.34 | $4.984 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 8.4 VDC |
|---|---|
| Turn Off Voltage (Min): | 1.2 VDC |
| Termination Style: | Plug In |
| Switching Voltage: | 250VAC, 30VDC - Max |
| Series: | AHN |
| Release Time: | 5ms |
| Relay Type: | General Purpose |
| Packaging: | Tube |
| Other Names: | 255-3337 |
| Operating Temperature: | -40°C ~ 50°C |
| Operate Time: | 15ms |
| Mounting Type: | Socketable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | - |
| Detailed Description: | General Purpose Relay SPDT (1 Form C) 12VDC Coil Socketable |
| Contact Rating (Current): | 16A |
| Contact Material: | Silver Nickel (AgNi) |
| Contact Form: | SPDT (1 Form C) |
| Coil Voltage: | 12VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 270 Ohms |
| Coil Power: | 530 mW |
| Coil Current: | 44.4mA |
| Email: | info@cjjhk.com |
Introduce
We can supply AHN12012, use the request quote form to request AHN12012 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHN12012.The price and lead time for AHN12012 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHN12012.We look forward to working with you to establish long-term relations of cooperation
