AHES4293
Panasonic

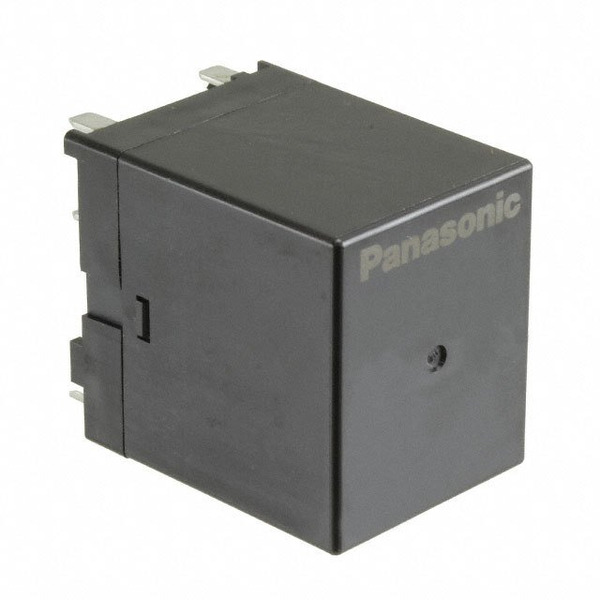

Images are for reference only.
See Product Specifications for product details.
Buy AHES4293 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AHES4293 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AHES4293 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE 3PST 35A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $21.70 | $20.615 | $19.53 | $18.445 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $17.36 | $16.275 | $15.19 | |||
Specifications
Data sheet
| Turn On Voltage (Max): | 36 VDC |
|---|---|
| Turn Off Voltage (Min): | 2.4 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 277VAC - Nom |
| Series: | HE-S |
| Release Time: | 10ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 255-5915 AHES4293-ND |
| Operating Temperature: | -40°C ~ 55°C |
| Operate Time: | 30ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | - |
| Detailed Description: | General Purpose Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 48VDC Coil Through Hole |
| Contact Rating (Current): | 35A |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Contact Form: | 3PST-2NO/1NC (2 Form A, 1 Form B) |
| Coil Voltage: | 48VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 1.22 kOhms |
| Coil Power: | 1.88 W |
| Coil Current: | 39.0mA |
| Email: | info@cjjhk.com |
Introduce
We can supply AHES4293, use the request quote form to request AHES4293 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHES4293.The price and lead time for AHES4293 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHES4293.We look forward to working with you to establish long-term relations of cooperation
