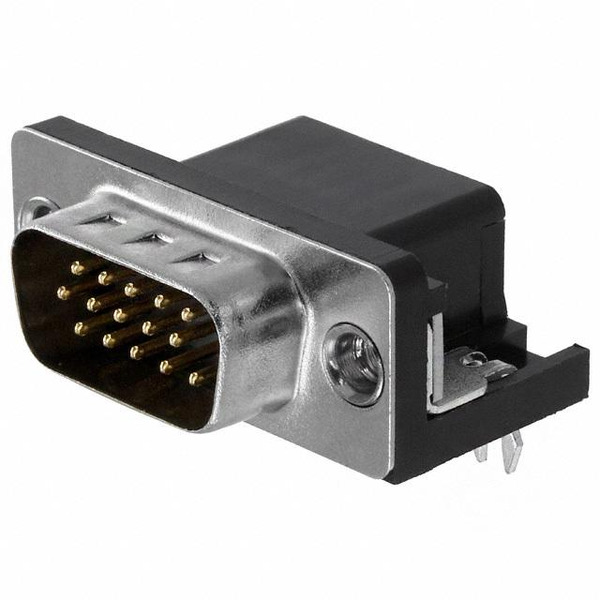

AHDS15A-KG-TAXB
ASSMANN WSW Components
Images are for reference only.
See Product Specifications for product details.
Buy AHDS15A-KG-TAXB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AHDS15A-KG-TAXB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AHDS15A-KG-TAXB |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN DSUB HD PLUG 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.22 | $1.076 | $1.013 | $0.971 | $0.928 | |
| 270 pcs | 510 pcs | 1020 pcs | 2520 pcs | ||
| $0.844 | $0.76 | $0.675 | $0.612 | ||
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | 250V |
| Termination: | Solder |
| Shell Size, Connector Layout: | 1 (DE, E) High Density |
| Shell Material, Finish: | Steel, Nickel Plated |
| Series: | - |
| Packaging: | Tray |
| Other Names: | AE11036 AHDS15A-KG-TAXB-R AHDS15A-KG-TAXB-R-ND |
| Operating Temperature: | - |
| Number of Rows: | 3 |
| Number of Positions: | 15 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature: | Housing/Shell (4-40) |
| Features: | Board Lock, Grounding Indents |
| Detailed Description: | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating: | 3A |
| Contact Type: | Signal |
| Contact Material: | Brass |
| Contact Form: | - |
| Contact Finish Thickness: | Flash |
| Contact Finish: | Gold |
| Connector Type: | Plug, Male Pins |
| Connector Style: | D-Sub, High Density |
| Color: | Black |
| Backset Spacing: | 0.350" (8.89mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply AHDS15A-KG-TAXB, use the request quote form to request AHDS15A-KG-TAXB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHDS15A-KG-TAXB.The price and lead time for AHDS15A-KG-TAXB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHDS15A-KG-TAXB.We look forward to working with you to establish long-term relations of cooperation
