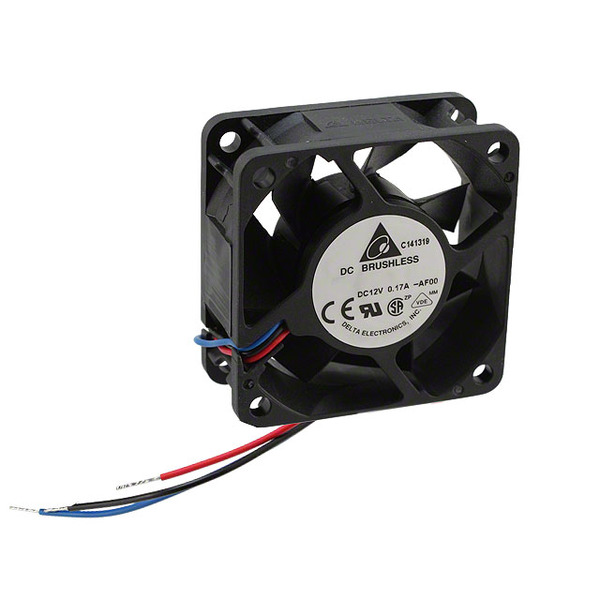

AFB0612H-AF00
Delta Electronics
Images are for reference only.
See Product Specifications for product details.
Buy AFB0612H-AF00 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AFB0612H-AF00 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AFB0612H-AF00 |
|---|---|
| Manufacturer | Delta |
| Description | AFB Series 4250 RPM 60 x 60 x 25 mm 23.8CFM 12 VDC 3-Wire Ball Bearing Axial Fan |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $12.283 | $11.087 | $10.00 | $9.783 | ||
Specifications
Data sheet
| Width: | 25.40mm |
|---|---|
| Weight: | 0.176 lb (79.83g) |
| Voltage Range: | 4 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 3 Wire Leads |
| Static Pressure: | 0.211 in H2O (52.6 Pa) |
| Size / Dimension: | Square - 60mm L x 60mm H |
| Series: | AFB |
| RPM: | 4250 RPM |
| Power (Watts): | 1.68W |
| Other Names: | 603-1525 AFB0612HAF00 |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 34.0 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Plastic |
| Material - Blade: | Plastic |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lifetime @ Temp.: | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | Speed Sensor (Tach) |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.140A |
| Bearing Type: | Ball |
| Approvals: | CE, CSA, UL, VDE |
| Air Flow: | 23.4 CFM (0.655m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply AFB0612H-AF00, use the request quote form to request AFB0612H-AF00 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AFB0612H-AF00.The price and lead time for AFB0612H-AF00 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AFB0612H-AF00.We look forward to working with you to establish long-term relations of cooperation
