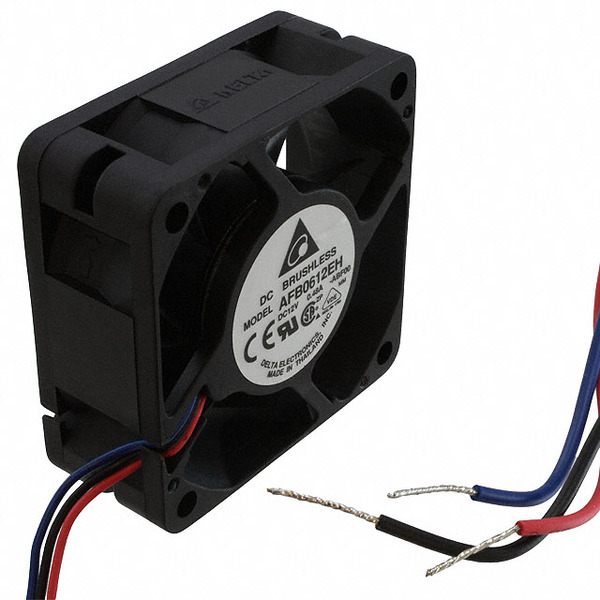

AFB0612EH-ABF00
Delta Electronics
Images are for reference only.
See Product Specifications for product details.
Buy AFB0612EH-ABF00 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AFB0612EH-ABF00 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AFB0612EH-ABF00 |
|---|---|
| Manufacturer | Delta Electronics |
| Description | FAN AXIAL 60X25.4MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.39 | $13.734 | $12.426 | $11.445 | ||
| 180 pcs | 360 pcs | 540 pcs | |||
| $10.268 | $9.483 | $8.829 | |||
Specifications
Data sheet
| Width: | 25.40mm |
|---|---|
| Weight: | 0.176 lb (79.83g) |
| Voltage Range: | 4 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 3 Wire Leads |
| Static Pressure: | 0.544 in H2O (135.5 Pa) |
| Size / Dimension: | Square - 60mm L x 60mm H |
| Series: | AFB |
| RPM: | 6800 RPM |
| Power (Watts): | 4.56W |
| Other Names: | 603-1035 AFB0612EHABF00 |
| Operating Temperature: | - |
| Noise: | 46.5 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Plastic |
| Material - Blade: | Plastic |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lifetime @ Temp.: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | Speed Sensor (Tach) |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.380A |
| Bearing Type: | Ball |
| Approvals: | CE, CSA, UL, VDE |
| Air Flow: | 38.4 CFM (1.08m³/min) |
