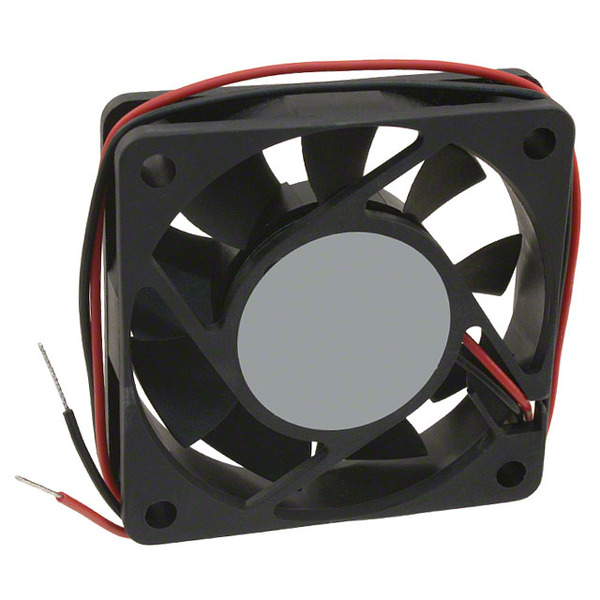

AFB0605MB
Delta Electronics
Images are for reference only.
See Product Specifications for product details.
Buy AFB0605MB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AFB0605MB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AFB0605MB |
|---|---|
| Manufacturer | Delta Electronics |
| Description | FAN AXIAL 60X15MM BALL 5VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $12.44 | $11.632 | $10.55 | $9.738 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.521 | $7.98 | $7.439 | |||
Specifications
Data sheet
| Width: | 15.00mm |
|---|---|
| Weight: | 0.098 lb (44.45g) |
| Voltage Range: | 4 ~ 6VDC |
| Voltage - Rated: | 5VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.119 in H2O (29.6 Pa) |
| Size / Dimension: | Square - 60mm L x 60mm H |
| Series: | AFB |
| RPM: | 3500 RPM |
| Power (Watts): | 1.00W |
| Other Names: | 603-1284 |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 29.0 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Plastic |
| Material - Blade: | Plastic |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lifetime @ Temp.: | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.200A |
| Bearing Type: | Ball |
| Approvals: | CE, CSA, UL, VDE |
| Air Flow: | 13.4 CFM (0.375m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply AFB0605MB, use the request quote form to request AFB0605MB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AFB0605MB.The price and lead time for AFB0605MB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AFB0605MB.We look forward to working with you to establish long-term relations of cooperation
