AFB03512HA
Delta Electronics

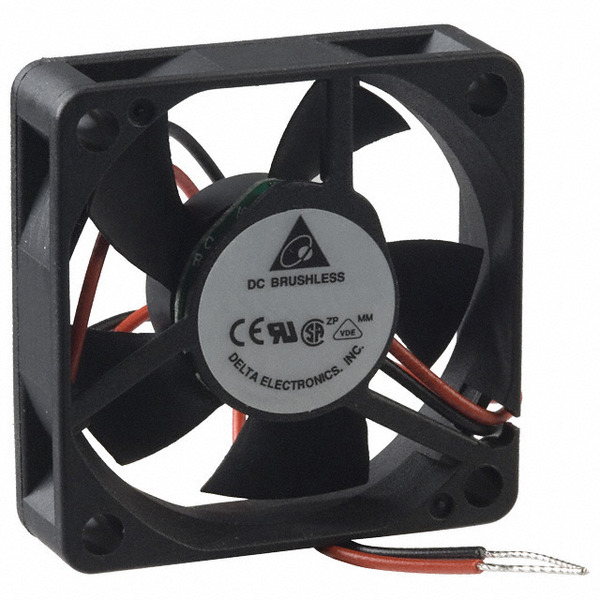

Images are for reference only.
See Product Specifications for product details.
Buy AFB03512HA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AFB03512HA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AFB03512HA |
|---|---|
| Manufacturer | Delta |
| Description | DC Fan Axial Ball Bearing 12V 9.5V to 13.8V 5.5CFM 22dB (35 X 35 X 10mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $8.916 | $8.048 | $7.259 | $7.101 | ||
Specifications
Data sheet
| Width: | 10.00mm |
|---|---|
| Weight: | 0.022 lb (9.98g) |
| Voltage Range: | 9.5 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.106 in H2O (26.4 Pa) |
| Size / Dimension: | Square - 35mm L x 35mm H |
| Series: | AFB |
| RPM: | 7000 RPM |
| Power (Watts): | 1.08W |
| Other Names: | 603-1001 |
| Operating Temperature: | - |
| Noise: | 22.0 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Plastic |
| Material - Blade: | Plastic |
| Lifetime @ Temp.: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.090A |
| Bearing Type: | Ball |
| Approvals: | CE, CSA, UL, VDE |
| Air Flow: | 5.5 CFM (0.154m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply AFB03512HA, use the request quote form to request AFB03512HA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AFB03512HA.The price and lead time for AFB03512HA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AFB03512HA.We look forward to working with you to establish long-term relations of cooperation
