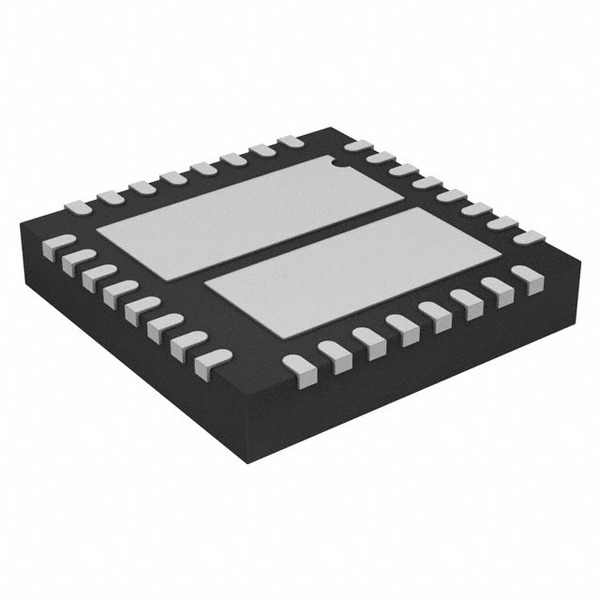

ADP2389ACPZ-R7
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy ADP2389ACPZ-R7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ADP2389ACPZ-R7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ADP2389ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices |
| Description | Buck Switching Regulator IC Positive Adjustable .6V 1 Output 12A 32-VFQFN Exposed Pad, CSP |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $5.978 | $5.396 | $4.867 | $4.761 | ||
Specifications
Data sheet
| Voltage - Output (Min/Fixed): | 0.6V |
|---|---|
| Voltage - Output (Max): | 18V |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 18V |
| Topology: | Buck |
| Synchronous Rectifier: | Yes |
| Supplier Device Package: | 32-LFCSP-VQ (5x5) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 32-VFQFN Exposed Pad, CSP |
| Output Type: | Adjustable |
| Output Configuration: | Positive |
| Other Names: | ADP2389ACPZ-R7TR |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Number of Outputs: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 19 Weeks |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Function: | Step-Down |
| Frequency - Switching: | 200kHz ~ 2.2MHz |
| Detailed Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 32-VFQFN Exposed Pad, CSP |
| Current - Output: | 12A |
| Base Part Number: | ADP2389 |
| Email: | info@cjjhk.com |
Introduce
We can supply ADP2389ACPZ-R7, use the request quote form to request ADP2389ACPZ-R7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADP2389ACPZ-R7.The price and lead time for ADP2389ACPZ-R7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADP2389ACPZ-R7.We look forward to working with you to establish long-term relations of cooperation
