AD9135BCPAZ
ADI (Analog Devices, Inc.)

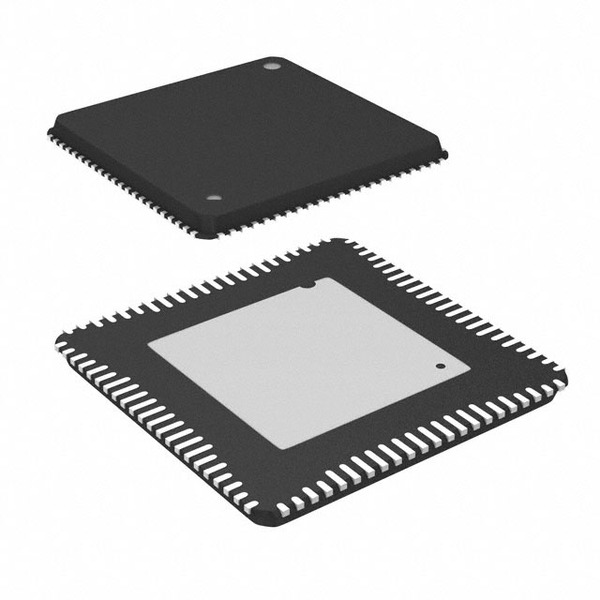

Images are for reference only.
See Product Specifications for product details.
Buy AD9135BCPAZ with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AD9135BCPAZ with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AD9135BCPAZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC DAC 11BIT 2.8GSPS QUAD 88LFCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 9 pcs | ||||
|---|---|---|---|---|---|
| $80.91 | |||||
Specifications
Data sheet
| Voltage - Supply, Digital: | 1.14 V ~ 1.26 V |
|---|---|
| Voltage - Supply, Analog: | 3.13 V ~ 3.47 V |
| Supplier Device Package: | 88-LFCSP-VQ (12x12) |
| Settling Time: | 20ns (Typ) |
| Series: | TxDAC+® |
| Reference Type: | Internal |
| Packaging: | Tray |
| Package / Case: | 88-VFQFN Exposed Pad, CSP |
| Output Type: | Current - Unbuffered |
| Operating Temperature: | -40°C ~ 85°C |
| Number of D/A Converters: | 2 |
| Number of Bits: | 11 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| INL/DNL (LSB): | ±0.35, ±0.175 |
| Differential Output: | Yes |
| Detailed Description: | 11 Bit Digital to Analog Converter 2 88-LFCSP-VQ (12x12) |
| Data Interface: | JESD204B |
| Base Part Number: | AD9135 |
| Architecture: | Current Source |
| Email: | info@cjjhk.com |
Introduce
We can supply AD9135BCPAZ, use the request quote form to request AD9135BCPAZ pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AD9135BCPAZ.The price and lead time for AD9135BCPAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AD9135BCPAZ.We look forward to working with you to establish long-term relations of cooperation
