ACNH3212
Panasonic

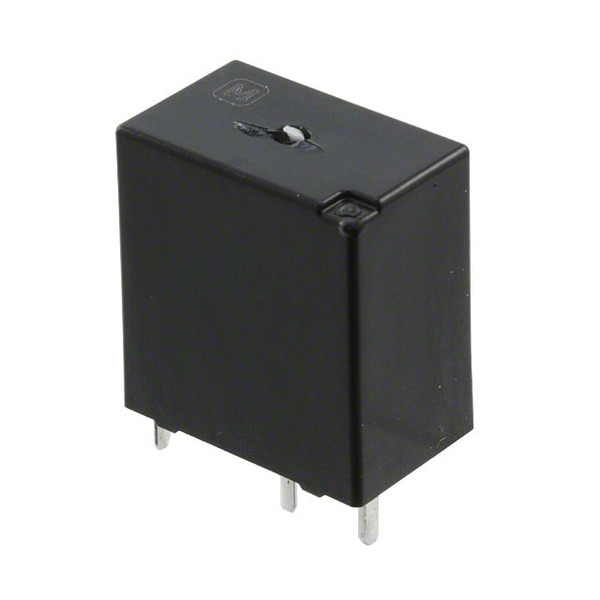

Images are for reference only.
See Product Specifications for product details.
Buy ACNH3212 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ACNH3212 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ACNH3212 |
|---|---|
| Manufacturer | Panasonic |
| Description | Electromechanical Relay SPST-NO 30A 12V 320Ohm Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.074 | $2.774 | $2.502 | $2.448 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 6.5 VDC |
|---|---|
| Turn Off Voltage (Min): | 1 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 14VDC - Nom |
| Series: | ACNH |
| Release Time: | 10ms |
| Packaging: | Tube |
| Other Names: | 255-2583 |
| Operating Temperature: | -40°C ~ 110°C |
| Operate Time: | 10ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Sealed - Fully |
| Contact Rating (Current): | 30A |
| Contact Material: | Silver Alloy, Cadmium Free |
| Contact Form: | SPST-NO (1 Form A) |
| Coil Voltage: | 12VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 320 Ohms |
| Coil Power: | 450 mW |
| Coil Current: | 37.5mA |
| Email: | info@cjjhk.com |
Introduce
We can supply ACNH3212, use the request quote form to request ACNH3212 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ACNH3212.The price and lead time for ACNH3212 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ACNH3212.We look forward to working with you to establish long-term relations of cooperation
