ACM90V-701-2PL-TL00
TDK Corporation

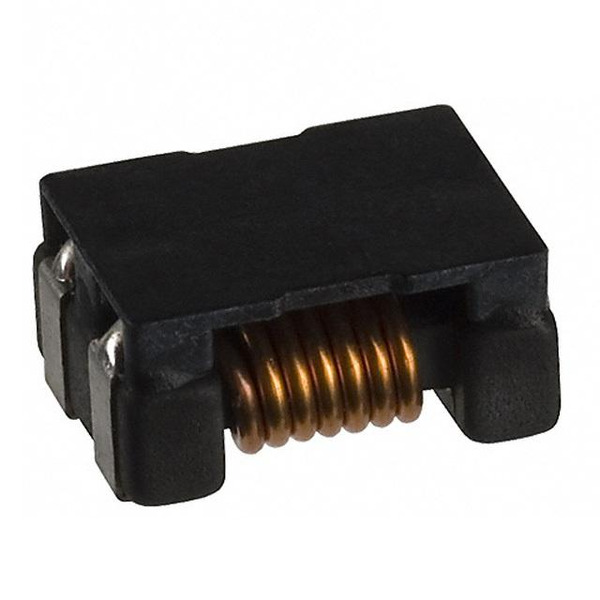

Images are for reference only.
See Product Specifications for product details.
Buy ACM90V-701-2PL-TL00 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ACM90V-701-2PL-TL00 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ACM90V-701-2PL-TL00 |
|---|---|
| Manufacturer | TDK |
| Description | Common Mode Chokes Dual 700Ohm 100MHz 5A 10mOhm DCR SMD Automotive T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.176 | $1.061 | $0.957 | $0.936 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 80V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Series: | ACM-V |
| Ratings: | AEC-Q200 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Horizontal, 4 J-Lead |
| Other Names: | 445-4082-2 ACM90V7012PLTL00 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 25 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance @ Frequency: | 700 Ohms @ 100MHz |
| Height (Max): | 0.177" (4.50mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 5A DCR 10 mOhm |
| DC Resistance (DCR) (Max): | 10 mOhm |
| Current Rating (Max): | 5A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply ACM90V-701-2PL-TL00, use the request quote form to request ACM90V-701-2PL-TL00 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ACM90V-701-2PL-TL00.The price and lead time for ACM90V-701-2PL-TL00 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ACM90V-701-2PL-TL00.We look forward to working with you to establish long-term relations of cooperation
