ABV1215613R
Panasonic

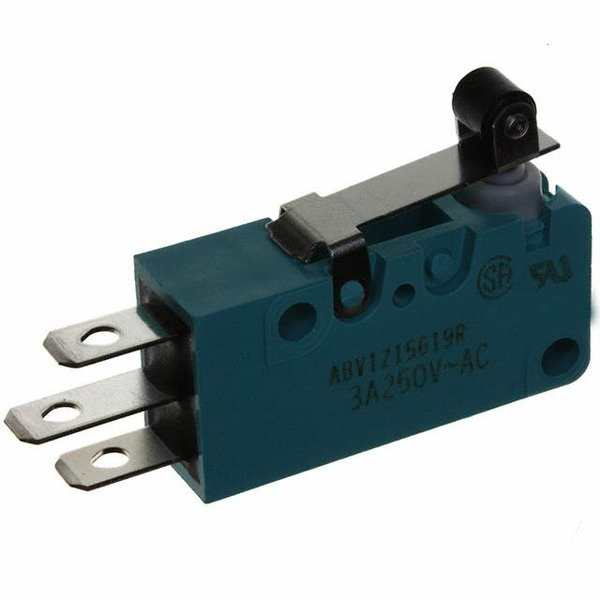

Images are for reference only.
See Product Specifications for product details.
Buy ABV1215613R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ABV1215613R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ABV1215613R |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 3A 250V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.80 | $4.64 | $4.408 | $4.292 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.712 | $3.48 | $3.306 | $3.19 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 250V |
|---|---|
| Termination Style: | Solder, Quick Connect - 0.187" (4.7mm) |
| Switch Function: | On-Mom |
| Series: | ABV |
| Release Force: | 60gf |
| Pretravel: | 0.063" (1.6mm) |
| Packaging: | Bulk |
| Overtravel: | 0.030" (0.76mm) |
| Other Names: | 255-5830 ABV1215613R-ND |
| Operating Temperature: | -40°C ~ 85°C |
| Operating Position: | 0.815" (20.7mm) |
| Operating Force: | 320gf |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 5,000,000 Cycles |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP50 - Dust Protected |
| Features: | - |
| Electrical Life: | 100,000 Cycles |
| Differential Travel: | 0.020" (0.5mm) |
| Current Rating: | 3A (AC) |
| Circuit: | SPDT |
| Actuator Type: | Lever, Roller |
| Email: | info@cjjhk.com |
Introduce
We can supply ABV1215613R, use the request quote form to request ABV1215613R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ABV1215613R.The price and lead time for ABV1215613R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ABV1215613R.We look forward to working with you to establish long-term relations of cooperation
