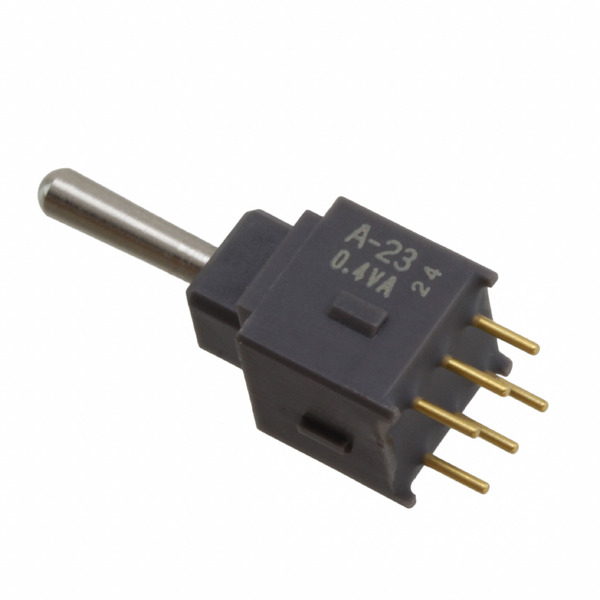

A23AP
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy A23AP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy A23AP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | A23AP |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.00 | $4.76 | $4.641 | $4.522 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.403 | $4.046 | $3.57 | $3.213 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 28V |
| Termination Style: | PC Pin |
| Switch Function: | On-Off-On |
| Series: | A |
| Panel Cutout Dimensions: | - |
| Packaging: | Bulk |
| Operating Temperature: | -30°C ~ 85°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Process Sealed |
| Electrical Life: | 50,000 Cycles |
| Detailed Description: | Toggle Switch DPDT Through Hole |
| Current Rating: | 0.4VA (AC/DC) |
| Circuit: | DPDT |
| California Prop 65: | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide), Lead, and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Bushing Thread: | Unthreaded, Square |
| Actuator Type: | Standard Round |
| Actuator Material: | Brass, Nickel Plated |
| Actuator Length: | 10.00mm |
| Email: | info@cjjhk.com |
Introduce
We can supply A23AP, use the request quote form to request A23AP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A23AP.The price and lead time for A23AP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# A23AP.We look forward to working with you to establish long-term relations of cooperation
