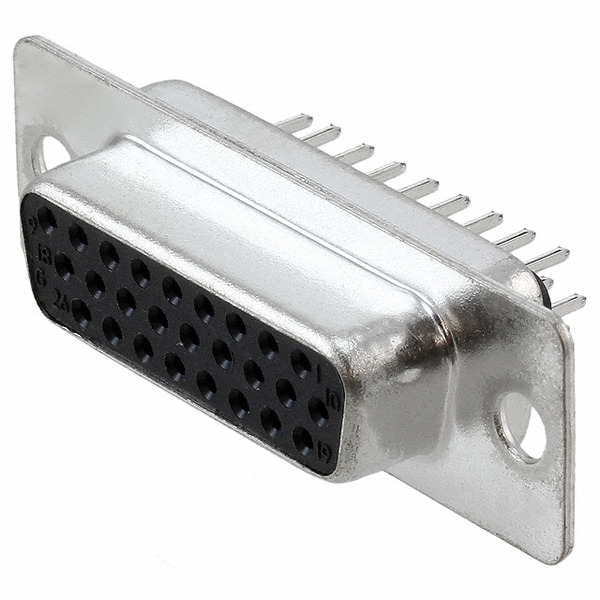

A-HDF 26 PP/Z
ASSMANN WSW Components
Images are for reference only.
See Product Specifications for product details.
Buy A-HDF 26 PP/Z with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy A-HDF 26 PP/Z with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | A-HDF 26 PP/Z |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB HD RCPT 26P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.71 | $1.548 | $1.454 | $1.39 | $1.327 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.201 | $1.106 | $0.948 | $0.885 | ||
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | 250V |
| Termination: | Solder |
| Shell Size, Connector Layout: | 2 (DA, A) High Density |
| Shell Material, Finish: | Steel, Tin Plated |
| Series: | - |
| Packaging: | Tray |
| Other Names: | A-HDF-26-PP/Z A-HDF26PP-TL-B-R A-HDF26PP-TL-B-R-ND AE11029 |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Rows: | 3 |
| Number of Positions: | 26 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature: | Housing/Shell (Unthreaded) |
| Features: | - |
| Detailed Description: | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating: | 3A |
| Contact Type: | Signal |
| Contact Material: | Copper Alloy |
| Contact Form: | - |
| Contact Finish Thickness: | Flash |
| Contact Finish: | Gold |
| Connector Type: | Receptacle, Female Sockets |
| Connector Style: | D-Sub, High Density |
| Color: | Black |
| Backset Spacing: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply A-HDF 26 PP/Z, use the request quote form to request A-HDF 26 PP/Z pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A-HDF 26 PP/Z.The price and lead time for A-HDF 26 PP/Z depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# A-HDF 26 PP/Z.We look forward to working with you to establish long-term relations of cooperation
