A-DS 09 LL-WP
ASSMANN WSW Components

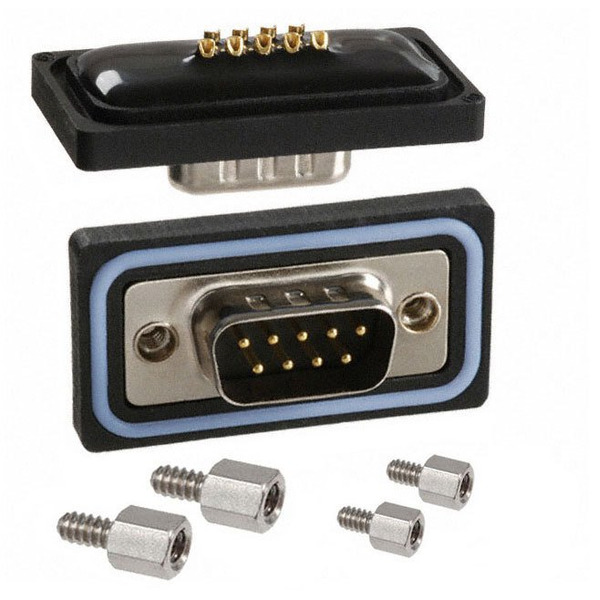

Images are for reference only.
See Product Specifications for product details.
Buy A-DS 09 LL-WP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy A-DS 09 LL-WP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | A-DS 09 LL-WP |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB PLUG 9POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $10.86 | $10.388 | $9.444 | $8.972 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $8.736 | $7.791 | $7.319 | $6.469 | ||
Specifications
Data sheet
| Wire Gauge: | 22-26 AWG |
|---|---|
| Voltage Rating: | - |
| Termination: | Solder Cup |
| Shell Size, Connector Layout: | 1 (DE, E) |
| Shell Material, Finish: | - |
| Series: | - |
| Packaging: | Tray |
| Other Names: | A-DS 09 LL-WP-R A-DS-09-LL-WP A-DS09LL-WP-R ADS09LLWPR AE10096 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions: | 9 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Housing Material: | Polyamide (PA), Nylon, Glass Filled |
| Flange Feature: | Mating Side, Female Screwlock |
| Features: | Grounding Indents |
| Detailed Description: | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating: | - |
| Contact Type: | Signal |
| Contact Material: | Copper Alloy |
| Contact Form: | - |
| Contact Finish Thickness: | - |
| Contact Finish: | Gold |
| Connector Type: | Plug, Male Pins |
| Connector Style: | D-Sub |
| Color: | Black |
| Backset Spacing: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply A-DS 09 LL-WP, use the request quote form to request A-DS 09 LL-WP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A-DS 09 LL-WP.The price and lead time for A-DS 09 LL-WP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# A-DS 09 LL-WP.We look forward to working with you to establish long-term relations of cooperation
