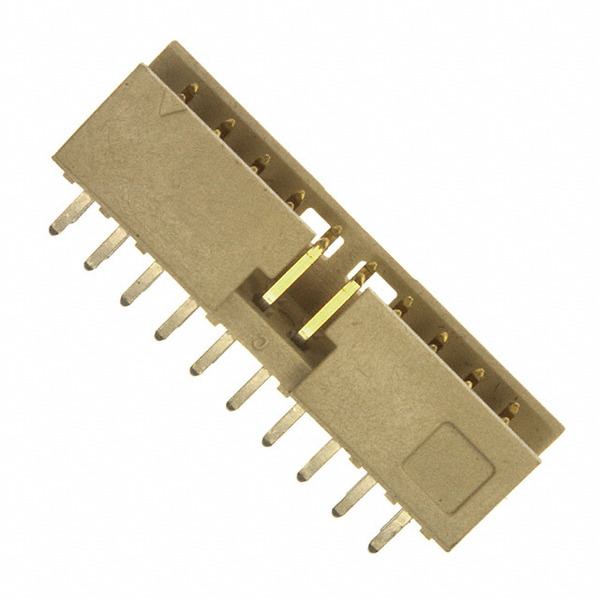

98414-G06-20LF
Amphenol Commercial (Amphenol ICC)
Images are for reference only.
See Product Specifications for product details.
Buy 98414-G06-20LF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 98414-G06-20LF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 98414-G06-20LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 20POS 2MM STR DL PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.88 | $1.705 | $1.461 | $1.218 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.044 | $0.925 | $0.905 | |||
Specifications
Data sheet
| Voltage Rating: | 200V (AC/DC) |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Minitek® |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 609-2582 98414-G20LF 98414G0620LF |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 20 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Thermoplastic |
| Insulation Height: | 0.232" (5.90mm) |
| Insulation Color: | Cream |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole 20 position 0.079" (2.00mm) |
| Current Rating: | 2A (AC/DC) |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.098" (2.50mm) |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Finish Thickness - Post: | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold, GXT™ |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
