94809
3M

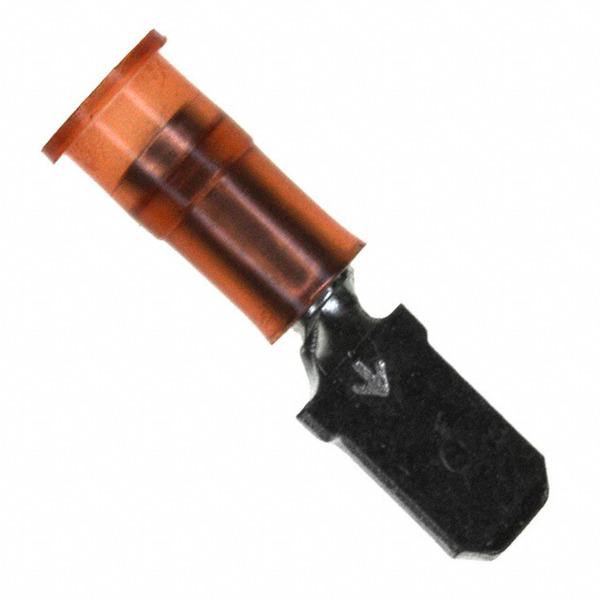

Images are for reference only.
See Product Specifications for product details.
Buy 94809 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 94809 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 94809 |
|---|---|
| Manufacturer | 3M |
| Description | CONN QC TAB 18-22AWG 0.250 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.42 | $0.396 | $0.339 | $0.288 | $0.277 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.249 | $0.237 | $0.198 | $0.181 | ||
Specifications
Data sheet
| Wire Gauge: | 18-22 AWG |
|---|---|
| Termination: | Crimp |
| Terminal Type: | Standard |
| Tab Width: | 0.250" (6.35mm) |
| Tab Thickness: | 0.032" (0.81mm) |
| Tab Length: | - |
| Series: | Highland™ |
| Packaging: | Bulk |
| Other Names: | 054007-94809 3M160915 5400794809 54007948094 7010397404 71M-250-32-NB 80611253099 94809-01 94809-01-ND |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Overall: | 0.920" (23.37mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.145" (3.68mm) |
| Insulation: | Non-Mating End Insulated |
| Gender: | Male |
| Features: | Butted Seam |
| Detailed Description: | 0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Mating End Insulated |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 94809, use the request quote form to request 94809 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 94809.The price and lead time for 94809 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 94809.We look forward to working with you to establish long-term relations of cooperation
