94780
3M

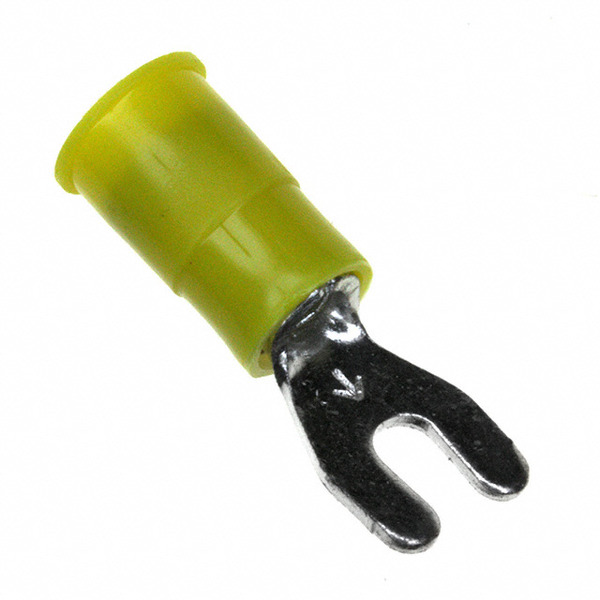

Images are for reference only.
See Product Specifications for product details.
Buy 94780 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 94780 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 94780 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.42 | $0.396 | $0.356 | $0.317 | $0.304 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.277 | $0.264 | $0.218 | $0.198 | ||
Specifications
Data sheet
| Wire Gauge: | 10-12 AWG |
|---|---|
| Width - Outer Edges: | 0.380" (9.65mm) |
| Tongue Inside Opening: | - |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 6 Stud |
| Series: | Highland™ |
| Packaging: | Bulk |
| Other Names: | 054007-94780 33-6-NB 3M160909 5400794780 54007947806 7010397395 80611252802 94780-01 94780-01-ND |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Termination: | 0.550" (13.97mm) |
| Length - Ring Center to Termination: | 0.290" (7.37mm) |
| Length - Overall: | 1.030" (26.16mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.250" (6.35mm) |
| Insulation: | Insulated |
| Features: | Butted Seam |
| Detailed Description: | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material: | Copper, ETP |
| Contact Finish: | Tin |
| Color: | Yellow |
| Email: | info@cjjhk.com |
Introduce
We can supply 94780, use the request quote form to request 94780 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 94780.The price and lead time for 94780 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 94780.We look forward to working with you to establish long-term relations of cooperation
