94767
3M

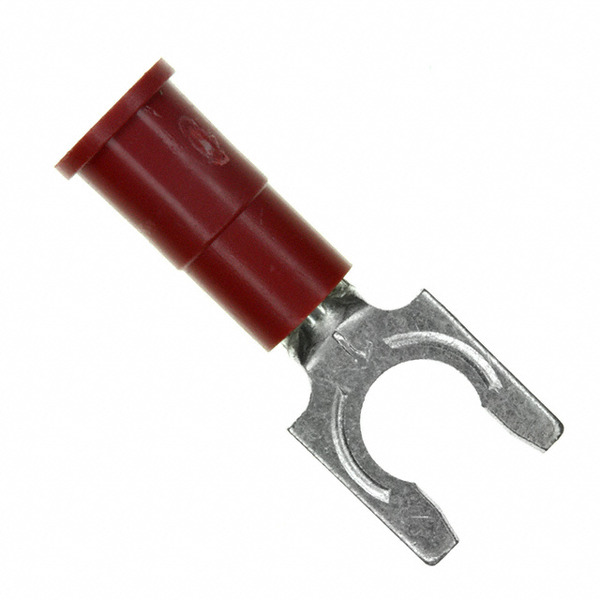

Images are for reference only.
See Product Specifications for product details.
Buy 94767 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 94767 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 94767 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SPADE TERM 18-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.125 | |||||
Specifications
Data sheet
| Wire Gauge: | 18-22 AWG |
|---|---|
| Width - Outer Edges: | 0.340" (8.64mm) |
| Tongue Inside Opening: | - |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 10 Stud |
| Series: | Highland™ |
| Packaging: | Bulk |
| Other Names: | 054007-94767 31-10-P 5400794767 54007947677 7010397390 80611252679 94767-01 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Vinyl |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Termination: | 0.450" (11.43mm) |
| Length - Ring Center to Termination: | 0.290" (7.37mm) |
| Length - Overall: | 0.900" (22.86mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.145" (3.68mm) |
| Insulation: | Insulated |
| Features: | Butted Seam |
| Detailed Description: | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material: | Copper, ETP |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 94767, use the request quote form to request 94767 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 94767.The price and lead time for 94767 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 94767.We look forward to working with you to establish long-term relations of cooperation
