929836-01-36
3M

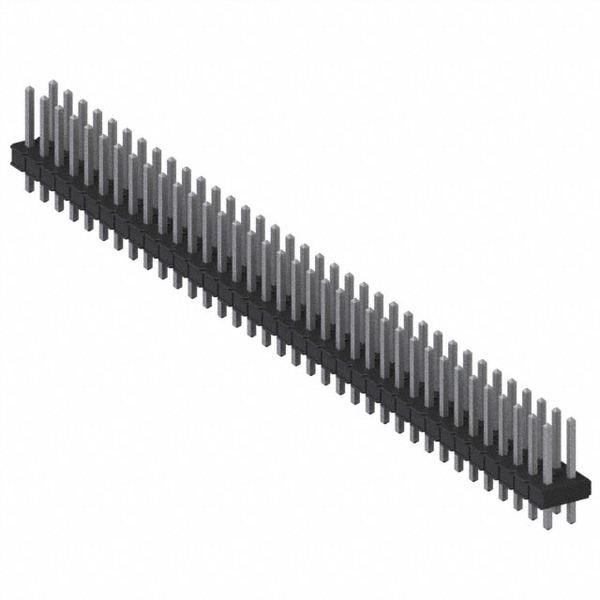

Images are for reference only.
See Product Specifications for product details.
Buy 929836-01-36 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 929836-01-36 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 929836-01-36 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 72POS DL .100" TI |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.82 | $4.627 | $3.856 | $3.278 | $2.796 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | 929 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.445" (11.30mm) |
| Other Names: | 05400783248 3M155856 3M155856-ND 3M156447-72 5400783248 54007832485 7010399239 80620071367 929836-01-36-ND 9298360136 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 72 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height: | 0.100" (2.54mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 72 position 0.100" (2.54mm) |
| Current Rating: | 2.5A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.110" (2.79mm) |
| Contact Length - Mating: | 0.235" (5.97mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Tin-Lead |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 929836-01-36, use the request quote form to request 929836-01-36 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 929836-01-36.The price and lead time for 929836-01-36 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 929836-01-36.We look forward to working with you to establish long-term relations of cooperation
