920-508J-53P
Amphenol Connex (Amphenol RF)

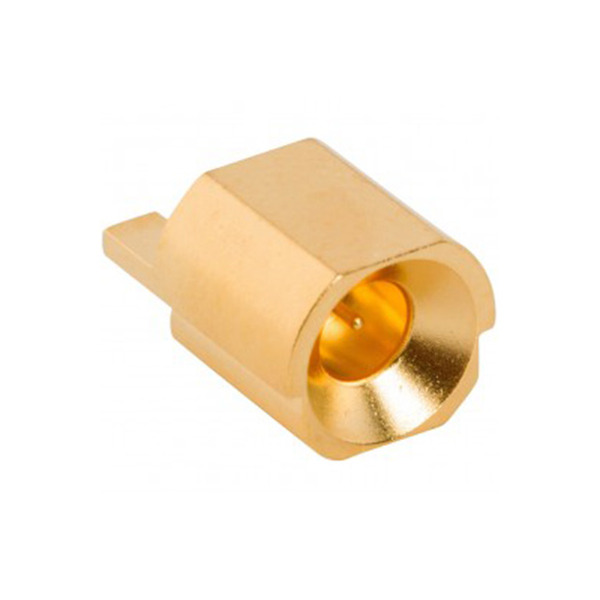

Images are for reference only.
See Product Specifications for product details.
Buy 920-508J-53P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 920-508J-53P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 920-508J-53P |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HD-EFI JACK 50 OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $6.88 | $6.596 | $6.023 | $5.736 | $5.449 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $4.876 | $4.589 | $4.015 | $3.814 | ||
Specifications
Data sheet
| Shield Termination: | Solder |
|---|---|
| Series: | HD-EFI |
| Packaging: | Tray |
| Other Names: | ARF3154 |
| Operating Temperature: | -45°C ~ 125°C |
| Number of Ports: | 1 |
| Mounting Type: | Board Edge, End Launch |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Cycles: | 200 |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 0.1dB |
| Ingress Protection: | - |
| Includes: | - |
| Impedance: | 50 Ohm |
| Housing Color: | Gold |
| Frequency - Max: | 6GHz |
| Features: | Smooth Bore |
| Fastening Type: | Push-Pull |
| Dielectric Material: | Polytetrafluoroethylene (PTFE) |
| Detailed Description: | EFI, HD Connector Plug, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination: | Solder |
| Connector Type: | Plug, Male Pin |
| Connector Style: | EFI, HD |
| Center Contact Plating: | Gold |
| Center Contact Material: | Brass |
| Cable Group: | - |
| Body Material: | Brass |
| Body Finish: | Nickel |
| Email: | info@cjjhk.com |
Introduce
We can supply 920-508J-53P, use the request quote form to request 920-508J-53P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 920-508J-53P.The price and lead time for 920-508J-53P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 920-508J-53P.We look forward to working with you to establish long-term relations of cooperation
