90814-3818
Affinity Medical Technologies - a Molex company

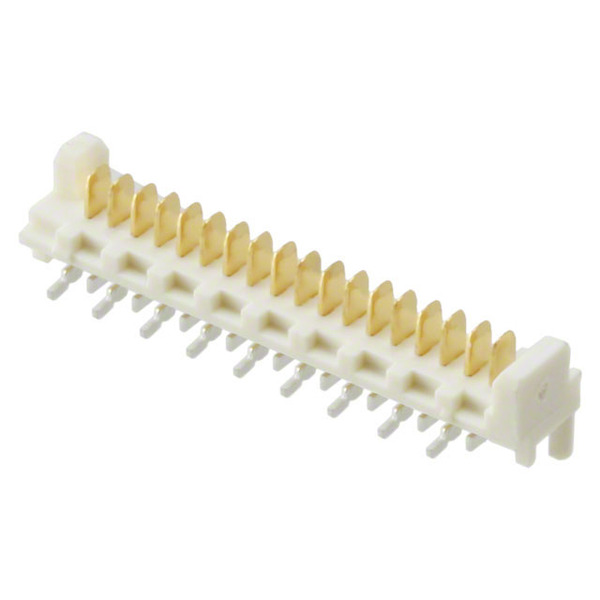

Images are for reference only.
See Product Specifications for product details.
Buy 90814-3818 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 90814-3818 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 90814-3818 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 18PS 1.27MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.59 | $1.446 | $1.239 | $1.033 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.885 | $0.785 | $0.767 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 2 Wall |
| Series: | Picoflex PF-50 90814 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | 908143818 WM19291 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 18 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height: | 0.161" (4.10mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Board Guide |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 18 position 0.050" (1.27mm) |
| Current Rating: | - |
| Contact Type: | Male Blade |
| Contact Shape: | Rectangular |
| Contact Material: | Cartridge Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.085" (2.15mm) |
| Contact Finish Thickness - Post: | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating: | 24.0µin (0.61µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Palladium-Nickel |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical |
| Email: | info@cjjhk.com |
Introduce
We can supply 90814-3818, use the request quote form to request 90814-3818 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 90814-3818.The price and lead time for 90814-3818 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 90814-3818.We look forward to working with you to establish long-term relations of cooperation
