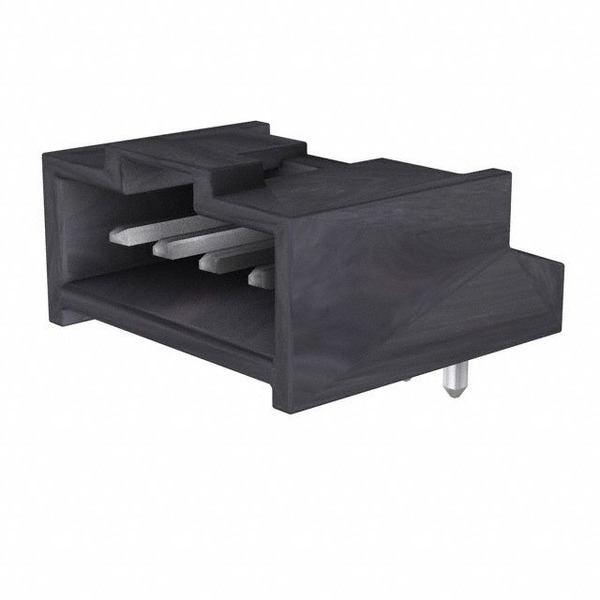

90136-2104
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 90136-2104 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 90136-2104 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 90136-2104 |
|---|---|
| Manufacturer | Molex |
| Description | C-Grid III Through Hole PCB Header, Right Angle, 4 Contacts, 1 Rows, 2.54mm Pitch |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.164 | $1.051 | $0.948 | $0.927 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | C-Grid III 90136 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0901362104 901362104 WM8195 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyester, Glass Filled |
| Insulation Height: | 0.284" (7.21mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.114" (2.90mm) |
| Contact Length - Mating: | 0.266" (6.75mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 118.1µin (3.00µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply 90136-2104, use the request quote form to request 90136-2104 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 90136-2104.The price and lead time for 90136-2104 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 90136-2104.We look forward to working with you to establish long-term relations of cooperation
