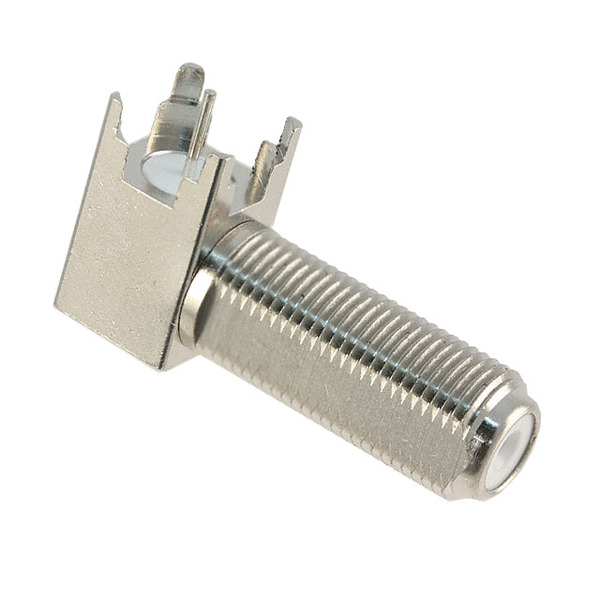

864B509
Bomar (Winchester Electronics)
Images are for reference only.
See Product Specifications for product details.
Buy 864B509 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 864B509 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 864B509 |
|---|---|
| Manufacturer | Bomar (Winchester Electronics) |
| Description | CONN F JACK R/A NON-CONSTANT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.48 | $3.336 | $2.78 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.433 | $2.363 | $2.016 | |||
Specifications
Data sheet
| Voltage Rating: | 500V |
|---|---|
| Shield Termination: | Solder |
| Series: | - |
| Packaging: | Tray |
| Other Names: | 991-1051 |
| Operating Temperature: | -40°C ~ 65°C |
| Number of Ports: | 1 |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 500 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | - |
| Ingress Protection: | - |
| Includes: | - |
| Impedance: | Non-Constant |
| Housing Color: | Silver |
| Frequency - Max: | 500MHz |
| Features: | - |
| Fastening Type: | Threaded |
| Dielectric Material: | Polypropylene (PP) |
| Detailed Description: | F Type Connector Jack, Female Socket Non-Constant Through Hole, Right Angle Solder |
| Contact Termination: | Solder |
| Connector Type: | Jack, Female Socket |
| Connector Style: | F Type |
| Center Contact Plating: | Nickel |
| Center Contact Material: | Brass |
| Cable Group: | - |
| Body Material: | Brass |
| Body Finish: | Nickel |
| Email: | info@cjjhk.com |
Introduce
We can supply 864B509, use the request quote form to request 864B509 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 864B509.The price and lead time for 864B509 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 864B509.We look forward to working with you to establish long-term relations of cooperation
