860-10-050-10-002000
Mill-Max

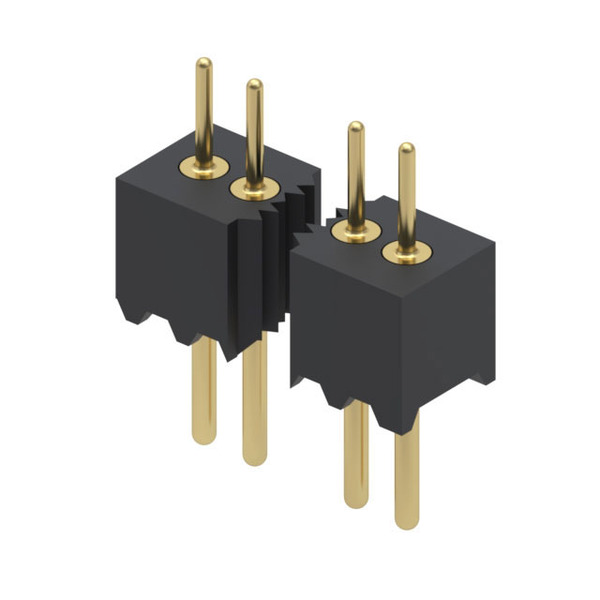

Images are for reference only.
See Product Specifications for product details.
Buy 860-10-050-10-002000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 860-10-050-10-002000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 860-10-050-10-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | 1MM PITCH HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $8.10 | $7.748 | $6.516 | $5.459 | $4.825 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | 860 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.039" (1.00mm) |
| Packaging: | Tube |
| Overall Contact Length: | 0.265" (6.73mm) |
| Other Names: | 8.60101E+15 ED1111 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 50 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA46), Nylon 4/6 |
| Insulation Height: | 0.098" (2.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 50 position 0.039" (1.00mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | - |
| Contact Length - Post: | 0.092" (2.34mm) |
| Contact Length - Mating: | 0.075" (1.90mm) |
| Contact Finish Thickness - Post: | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 860-10-050-10-002000, use the request quote form to request 860-10-050-10-002000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 860-10-050-10-002000.The price and lead time for 860-10-050-10-002000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 860-10-050-10-002000.We look forward to working with you to establish long-term relations of cooperation
