801-93-024-10-002000
Mill-Max

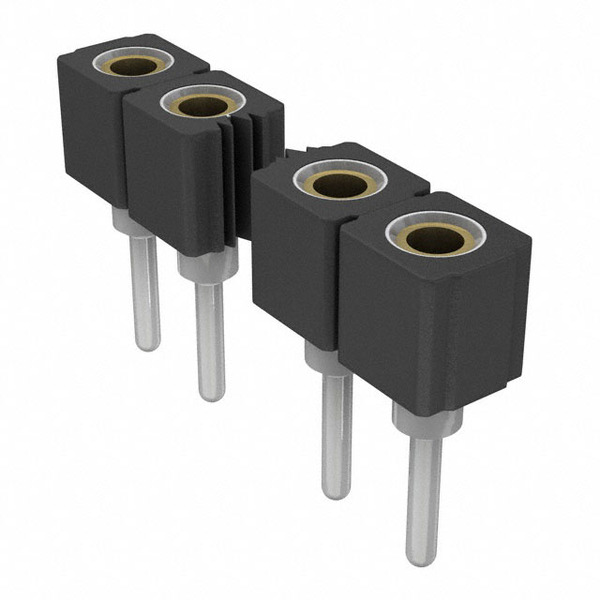

Images are for reference only.
See Product Specifications for product details.
Buy 801-93-024-10-002000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 801-93-024-10-002000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 801-93-024-10-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET 24POS .100 LOPROFILE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.05 | $4.519 | $3.721 | $2.942 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $2.525 | $2.304 | $2.215 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | 801 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Other Names: | ED10924 ED10924-ND ED10964-24 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 24 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height: | 0.165" (4.20mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 24 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating: | 4.5A |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Beryllium Copper |
| Contact Length - Post: | 0.125" (3.18mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 801-93-024-10-002000, use the request quote form to request 801-93-024-10-002000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 801-93-024-10-002000.The price and lead time for 801-93-024-10-002000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 801-93-024-10-002000.We look forward to working with you to establish long-term relations of cooperation
