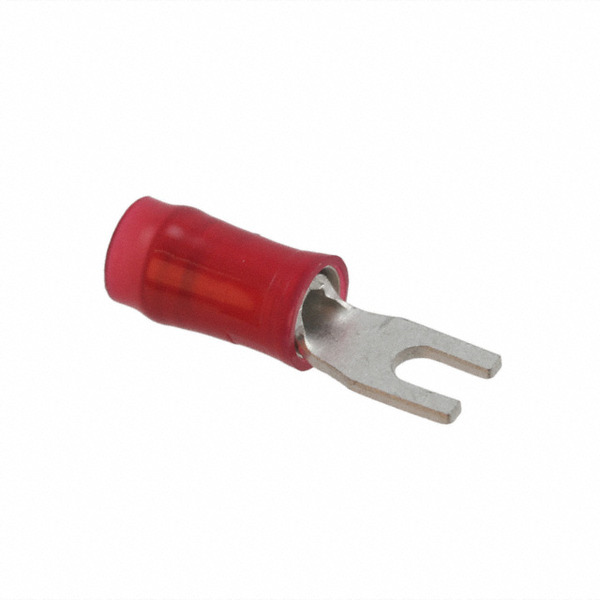

8-328394-1
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 8-328394-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 8-328394-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 8-328394-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #2 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.77 | $0.722 | $0.65 | $0.578 | $0.553 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.505 | $0.481 | $0.397 | $0.361 | ||
Specifications
Data sheet
| Wire Gauge: | 16-22 AWG |
|---|---|
| Width - Outer Edges: | 0.182" (4.62mm) |
| Tongue Inside Opening: | 0.093" (2.36mm) |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 2 Stud |
| Series: | PIDG |
| Packaging: | Bulk |
| Other Names: | 83283941 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Length - Termination: | 0.404" (10.26mm) |
| Length - Ring Center to Termination: | 0.203" (5.16mm) |
| Length - Overall: | 0.727" (18.47mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Red 2 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 8-328394-1, use the request quote form to request 8-328394-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 8-328394-1.The price and lead time for 8-328394-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 8-328394-1.We look forward to working with you to establish long-term relations of cooperation
