8-326859-1
Agastat Relays / TE Connectivity

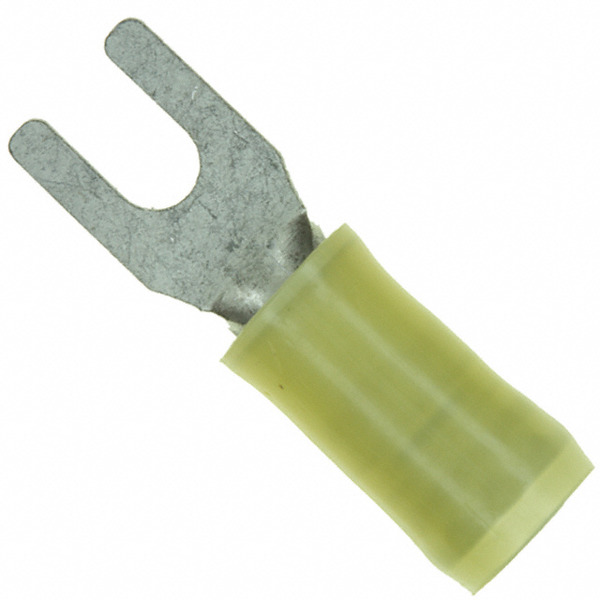

Images are for reference only.
See Product Specifications for product details.
Buy 8-326859-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 8-326859-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 8-326859-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.715 | |||||
Specifications
Data sheet
| Wire Gauge: | 10-12 AWG |
|---|---|
| Width - Outer Edges: | 0.312" (7.92mm) |
| Tongue Inside Opening: | 0.145" (3.68mm) |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 6 Stud |
| Series: | PIDG |
| Packaging: | Bulk |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Length - Termination: | 0.591" (15.01mm) |
| Length - Ring Center to Termination: | 0.296" (7.52mm) |
| Length - Overall: | 1.095" (27.81mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Yellow |
| Email: | info@cjjhk.com |
Introduce
We can supply 8-326859-1, use the request quote form to request 8-326859-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 8-326859-1.The price and lead time for 8-326859-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 8-326859-1.We look forward to working with you to establish long-term relations of cooperation
