796272-1
Agastat Relays / TE Connectivity

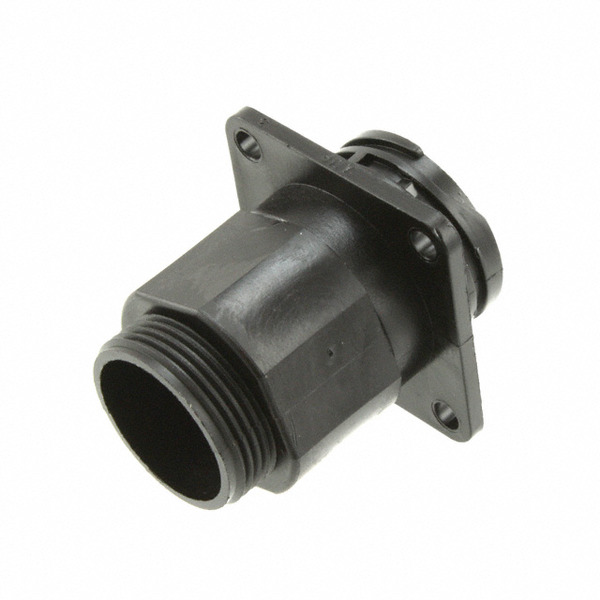

Images are for reference only.
See Product Specifications for product details.
Buy 796272-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 796272-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 796272-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 14POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $21.02 | $18.977 | $18.182 | $17.045 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $16.477 | $15.568 | $15.114 | |||
Specifications
Data sheet
| Type: | For Female Sockets |
|---|---|
| Shielding: | Unshielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | 17-14 |
| Shell Material: | Polyamide (PA), Nylon |
| Shell Finish: | - |
| Series: | CPC Series 1 |
| Packaging: | Bulk |
| Other Names: | 7962721 |
| Orientation: | Keyed |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Positions: | 14 |
| Note: | Contacts Not Included |
| Mounting Type: | Panel Mount |
| Mounting Feature: | Flange |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | Thermoplastic |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Includes: | - |
| Housing Color: | Black |
| Features: | Backshell |
| Fastening Type: | Threaded |
| Detailed Description: | 14 Position Circular Connector Receptacle Housing Panel Mount Backshell |
| Coupling Nut Material, Plating: | - |
| Coupling Nut Diameter: | - |
| Contact Type: | Crimp |
| Contact Size: | 16 |
| Contact Shape: | Circular |
| Connector Type: | Receptacle Housing |
| Email: | info@cjjhk.com |
Introduce
We can supply 796272-1, use the request quote form to request 796272-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 796272-1.The price and lead time for 796272-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 796272-1.We look forward to working with you to establish long-term relations of cooperation
