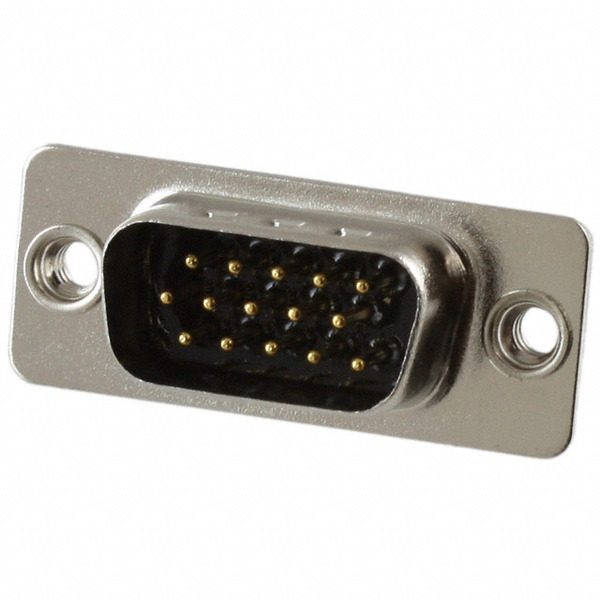

780-M15-103L011
NorComp
Images are for reference only.
See Product Specifications for product details.
Buy 780-M15-103L011 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 780-M15-103L011 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 780-M15-103L011 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB HD PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $7.49 | $7.176 | $6.552 | $6.24 | ||
| 180 pcs | 270 pcs | 540 pcs | 1080 pcs | ||
| $5.928 | $5.304 | $4.992 | $4.368 | ||
Specifications
Data sheet
| Wire Gauge: | 24-28 AWG |
|---|---|
| Voltage Rating: | - |
| Termination: | Solder Cup |
| Shell Size, Connector Layout: | 1 (DE, E) High Density |
| Shell Material, Finish: | Steel, Nickel Plated |
| Series: | Seal-D 780-M |
| Packaging: | Tray |
| Other Names: | 780M15103L011 NOR1079 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 3 |
| Number of Positions: | 15 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature: | Cable Side (4-40) |
| Features: | Grounding Indents |
| Detailed Description: | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating: | 5A |
| Contact Type: | Signal |
| Contact Material: | Brass |
| Contact Form: | Machined |
| Contact Finish Thickness: | Flash |
| Contact Finish: | Gold |
| Connector Type: | Plug, Male Pins |
| Connector Style: | D-Sub, High Density |
| Color: | Black |
| Backset Spacing: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 780-M15-103L011, use the request quote form to request 780-M15-103L011 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 780-M15-103L011.The price and lead time for 780-M15-103L011 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 780-M15-103L011.We look forward to working with you to establish long-term relations of cooperation
