760308101104

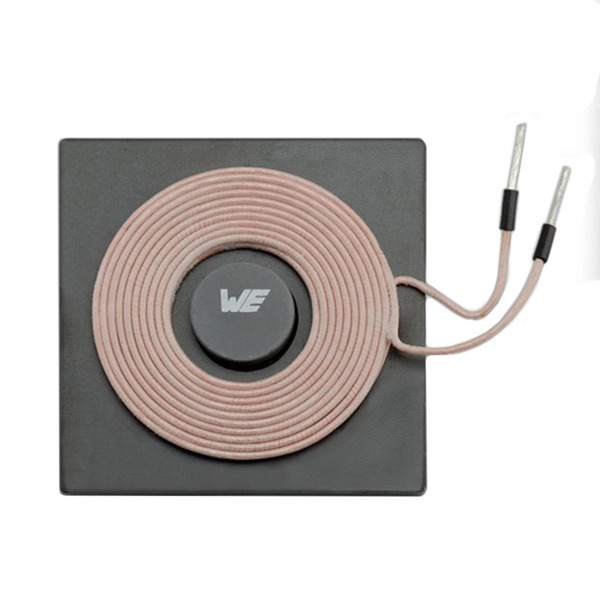

Images are for reference only.
See Product Specifications for product details.
Buy 760308101104 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 760308101104 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 760308101104 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | TX 1 COIL 1 LAYER 6.3UH 2.5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 66 pcs | 122 pcs | 244 pcs |
|---|---|---|---|---|---|
| $12.32 | $11.404 | $10.367 | $9.425 | $8.568 | |
Specifications
Data sheet
| Type: | 1 Coil, 1 Layer |
|---|---|
| Tolerance: | ±10% |
| Size / Dimension: | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
| Series: | WE-WPCC |
| Q @ Freq: | 42 @ 125kHz |
| Other Names: | 732-9677 |
| Operating Temperature: | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 6.3µH |
| Function: | Transmitter |
| Frequency - Self Resonant: | 20MHz |
| Detailed Description: | 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 125 mOhm Max |
| DC Resistance (DCR): | 125 mOhm Max |
| Current Rating: | 2.5A |
| Current - Saturation: | 6A |
| Email: | info@cjjhk.com |
Introduce
We can supply 760308101104, use the request quote form to request 760308101104 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 760308101104.The price and lead time for 760308101104 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 760308101104.We look forward to working with you to establish long-term relations of cooperation
