75869-330LF
Amphenol Commercial (Amphenol ICC)

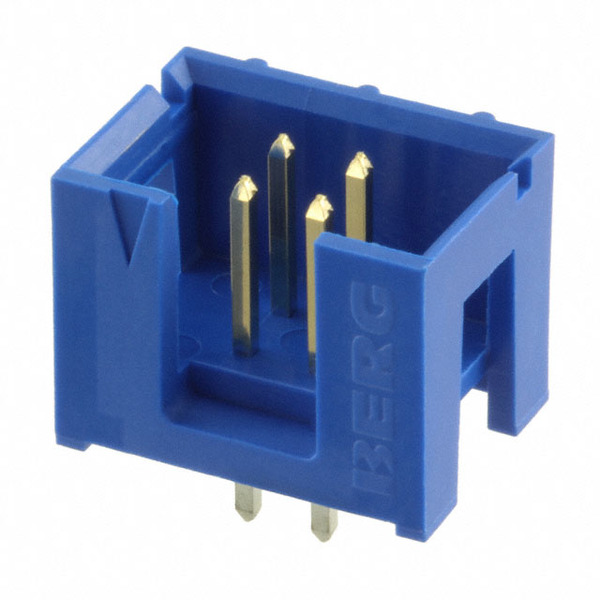

Images are for reference only.
See Product Specifications for product details.
Buy 75869-330LF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 75869-330LF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 75869-330LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 4POS DUAL VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.71 | $0.669 | $0.513 | $0.446 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.368 | $0.324 | $0.301 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Quickie™ |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | 609-5121 75869-330LF-ND |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Thermoplastic, Glass Filled |
| Insulation Height: | 0.377" (9.57mm) |
| Insulation Color: | Blue |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.120" (3.05mm) |
| Contact Length - Mating: | 0.236" (6.00mm) |
| Contact Finish Thickness - Post: | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold, GXT™ |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 75869-330LF, use the request quote form to request 75869-330LF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 75869-330LF.The price and lead time for 75869-330LF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 75869-330LF.We look forward to working with you to establish long-term relations of cooperation
