749251030

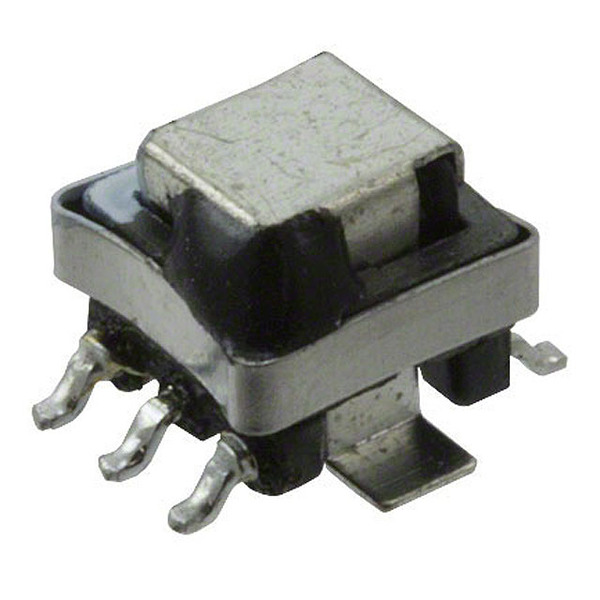

Images are for reference only.
See Product Specifications for product details.
Buy 749251030 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 749251030 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 749251030 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CURR SENSE XFMR 1:30 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | ||||
|---|---|---|---|---|---|
| $3.669 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:30 |
| Termination Style: | Gull Wing |
| Size / Dimension: | 0.303" L x 0.272" W (7.70mm x 6.90mm) |
| Series: | WE-CST |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 732-3280-2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 180µH |
| Height - Seated (Max): | 0.210" (5.33mm) |
| Frequency Range: | - |
| Energy Time (E.T.): | 15V µS |
| Detailed Description: | 1:30 Current Sense Transformer 6 mOhm Primary, 480 mOhm Secondary 180µH Surface Mount |
| DC Resistance (DCR): | 6 mOhm Primary, 480 mOhm Secondary |
| Current Ratio: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 749251030, use the request quote form to request 749251030 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 749251030.The price and lead time for 749251030 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 749251030.We look forward to working with you to establish long-term relations of cooperation
