7447709150

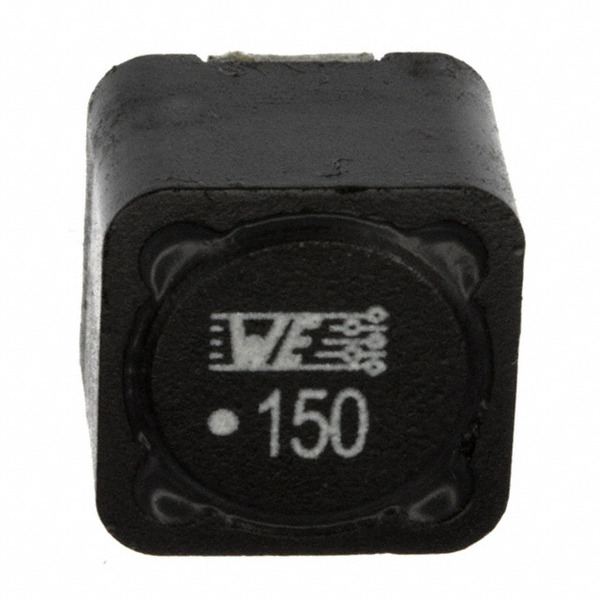

Images are for reference only.
See Product Specifications for product details.
Buy 7447709150 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 7447709150 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 7447709150 |
|---|---|
| Manufacturer | Wurth Elektronik |
| Description | Power Choke Shielded Wirewound 15uH 20% 1KHz Ferrite 6.5A 26mOhm DCR T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.961 | $1.77 | $1.597 | $1.562 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Shielding: | Shielded |
| Series: | WE-PD |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 732-1242-2 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 1kHz |
| Inductance: | 15µH |
| Height - Seated (Max): | 0.394" (10.00mm) |
| Frequency - Self Resonant: | 17MHz |
| Detailed Description: | 15µH Shielded Wirewound Inductor 6.5A 26 mOhm Max Nonstandard |
| DC Resistance (DCR): | 26 mOhm Max |
| Current Rating: | 6.5A |
| Current - Saturation: | 8A |
| Email: | info@cjjhk.com |
Introduce
We can supply 7447709150, use the request quote form to request 7447709150 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 7447709150.The price and lead time for 7447709150 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 7447709150.We look forward to working with you to establish long-term relations of cooperation
