71226-2425
Affinity Medical Technologies - a Molex company

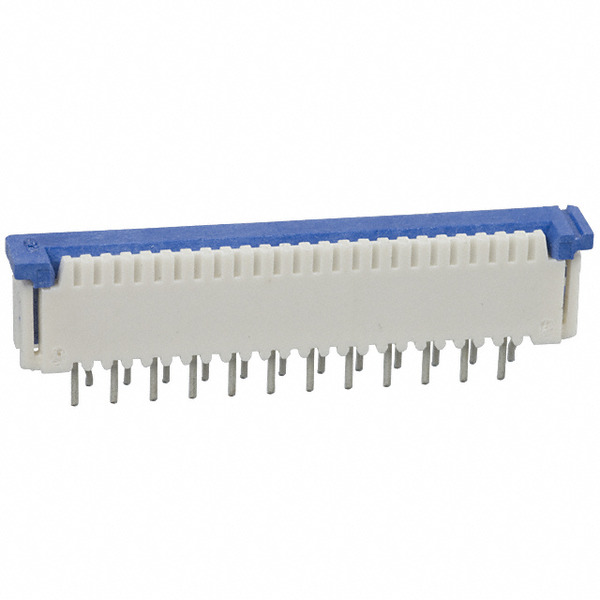

Images are for reference only.
See Product Specifications for product details.
Buy 71226-2425 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 71226-2425 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 71226-2425 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 24POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 125V |
|---|---|
| Termination: | Kinked Pin |
| Series: | 71226 |
| Pitch: | 0.039" (1.00mm) |
| Packaging: | Tray |
| Other Names: | 071226-2425 071226-2425-C 0712262425 0712262425-C 71226-2425-C 71226-2425-TR90 712262425 712262425-C WM5310 |
| Operating Temperature: | -20°C ~ 80°C |
| Number of Positions: | 24 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 5 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Slide Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon, Glass Filled |
| Housing Color: | Natural |
| Height Above Board: | 0.236" (6.00mm) |
| Flat Flex Type: | FFC |
| Features: | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 24 Position FFC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating: | 1A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 196.9µin (5.00µm) |
| Contact Finish: | Tin |
| Connector/Contact Type: | Contacts, Vertical, 1 Sided |
| Cable End Type: | Tapered |
| Actuator Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Color: | Blue |
