59045-010
Hamlin / Littelfuse
Images are for reference only.
See Product Specifications for product details.
Buy 59045-010 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 59045-010 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 59045-010 |
|---|---|
| Manufacturer | Littelfuse |

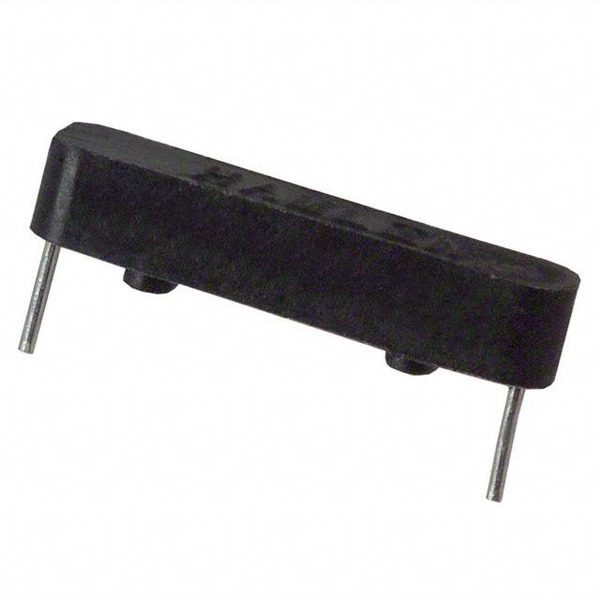

| Description | 59045 Series 200 V SPST 0.5 A Miniature PCB Mount Magnetic Sensor (No Actuator) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.492 | $1.346 | $1.214 | $1.188 | ||
Specifications
Data sheet
| Voltage - Switching DC: | 200V |
|---|---|
| Voltage - Switching AC: | 140V |
| Type: | Molded Body |
| Termination Style: | PC Pin |
| Size - Body: | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) |
| Series: | 59045 |
| Release Time: | 1ms |
| Release Range: | - |
| Power - Rated: | 10W |
| Packaging: | Bulk |
| Other Names: | 59045010 |
| Operating Temperature: | -40°C ~ 105°C |
| Operate Time: | 1ms |
| Operate Range: | 10 ~ 20AT |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Length - Overall: | 0.700" (17.78mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.170" (4.33mm) |
| Detailed Description: | Molded Body Reed Switch SPST-NO 10 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole |
| Current - Switching: | 350mA (AC), 500mA (DC) |
| Current - Carry: | 1A (DC) |
| Circuit: | SPST-NO |
| Capacitance: | 0.3pF |
| Email: | info@cjjhk.com |
Introduce
We can supply 59045-010, use the request quote form to request 59045-010 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 59045-010.The price and lead time for 59045-010 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 59045-010.We look forward to working with you to establish long-term relations of cooperation
