54809-1198
Affinity Medical Technologies - a Molex company

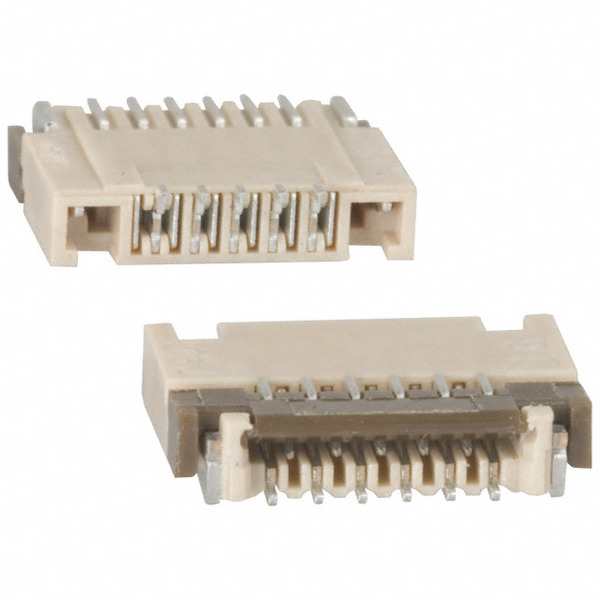

Images are for reference only.
See Product Specifications for product details.
Buy 54809-1198 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 54809-1198 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 54809-1198 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 11POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | Easy-On 54809 |
| Pitch: | 0.012" (0.30mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 054809-1198 0548091198 |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Positions: | 11 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Flip Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Housing Color: | - |
| Height Above Board: | 0.051" (1.30mm) |
| Flat Flex Type: | FPC |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.20mm |
| Detailed Description: | 11 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating: | 0.3A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin Bismuth |
| Connector/Contact Type: | Contacts, Bottom |
| Cable End Type: | Tapered |
| Actuator Material: | Polyamide (PA46), Nylon 4/6 |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 54809-1198, use the request quote form to request 54809-1198 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 54809-1198.The price and lead time for 54809-1198 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 54809-1198.We look forward to working with you to establish long-term relations of cooperation
