534302B03553G
Aavid Thermalloy

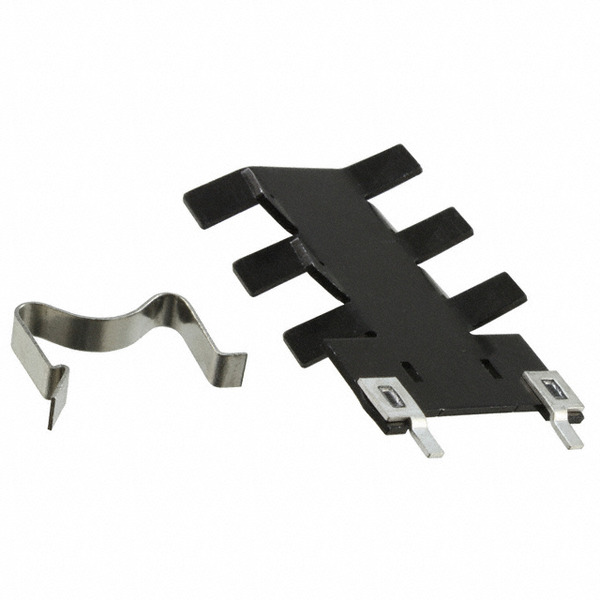

Images are for reference only.
See Product Specifications for product details.
Buy 534302B03553G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 534302B03553G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 534302B03553G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 W/TAB-KOOLCLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.70 | $1.615 | $1.572 | $1.53 | $1.445 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.36 | $1.275 | $1.19 | $1.148 | ||
Specifications
Data sheet
| Width: | 1.380" (35.05mm) |
|---|---|
| Type: | Board Level, Vertical |
| Thermal Resistance @ Natural: | 10.40°C/W |
| Thermal Resistance @ Forced Air Flow: | 5.00°C/W @ 200 LFM |
| Shape: | Rectangular, Fins |
| Series: | - |
| Power Dissipation @ Temperature Rise: | 6.0W @ 60°C |
| Package Cooled: | TO-220 |
| Other Names: | 044318 HS420 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Length: | 2.000" (50.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.480" (12.19mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-220 Aluminum 6.0W @ 60°C Board Level, Vertical |
| Attachment Method: | Clip and PC Pin |
| Email: | info@cjjhk.com |
Introduce
We can supply 534302B03553G, use the request quote form to request 534302B03553G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 534302B03553G.The price and lead time for 534302B03553G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 534302B03553G.We look forward to working with you to establish long-term relations of cooperation
