52956-3
Agastat Relays / TE Connectivity

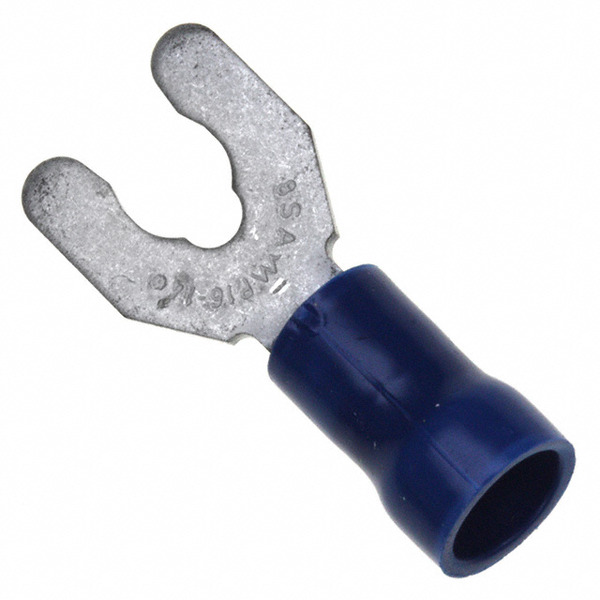

Images are for reference only.
See Product Specifications for product details.
Buy 52956-3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 52956-3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 52956-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 14-16AWG #8 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.243 | $0.235 | $0.215 | $0.21 | ||
Specifications
Data sheet
| Wire Gauge: | 14-16 AWG |
|---|---|
| Width - Outer Edges: | 0.375" (9.53mm) |
| Tongue Inside Opening: | 0.164" (4.17mm) |
| Termination: | Crimp |
| Terminal Type: | Spring, Snap |
| Stud/Tab Size: | 8 Stud |
| Series: | Plasti-Grip |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 52956-3-ND A136238TR |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Length - Termination: | 0.465" (11.81mm) |
| Length - Ring Center to Termination: | 0.281" (7.14mm) |
| Length - Overall: | 0.921" (23.39mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material: | Brass |
| Contact Finish: | Tin |
| Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply 52956-3, use the request quote form to request 52956-3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 52956-3.The price and lead time for 52956-3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 52956-3.We look forward to working with you to establish long-term relations of cooperation
