52411-1
Agastat Relays / TE Connectivity

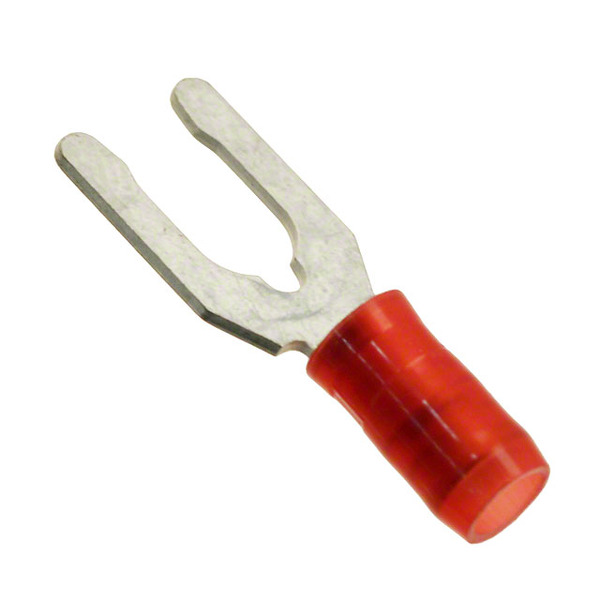

Images are for reference only.
See Product Specifications for product details.
Buy 52411-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 52411-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 52411-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #10 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.50 | $0.464 | $0.418 | $0.371 | $0.356 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.325 | $0.31 | $0.255 | $0.232 | ||
Specifications
Data sheet
| Wire Gauge: | 16-22 AWG |
|---|---|
| Width - Outer Edges: | 0.343" (8.71mm) |
| Tongue Inside Opening: | 0.190" (4.83mm) |
| Termination: | Crimp |
| Terminal Type: | Spring, Snap |
| Stud/Tab Size: | 10 Stud |
| Series: | PIDG |
| Packaging: | Cut Tape (CT) |
| Other Names: | A28160CT |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Length - Termination: | 0.414" (10.52mm) |
| Length - Ring Center to Termination: | 0.283" (7.19mm) |
| Length - Overall: | 1.005" (25.53mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Red 10 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 52411-1, use the request quote form to request 52411-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 52411-1.The price and lead time for 52411-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 52411-1.We look forward to working with you to establish long-term relations of cooperation
