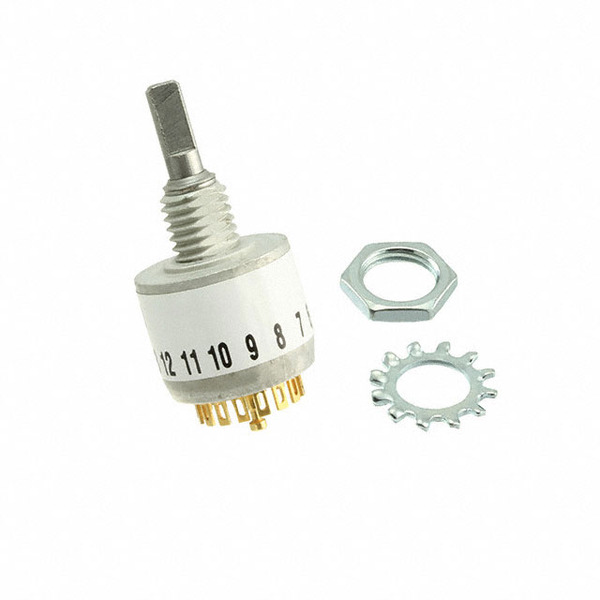

51A22-01-1-16N
Grayhill, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy 51A22-01-1-16N with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 51A22-01-1-16N with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 51A22-01-1-16N |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROTARY 16POS 150MA 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $23.79 | $22.18 | $21.859 | $21.537 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $18.966 | $18.323 | $18.001 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 115V |
| Termination Style: | Solder Lug |
| Series: | 51 |
| Panel Cutout Dimensions: | Circular - 6.45mm Dia |
| Other Names: | 51A22-01-1-16N-ND 51A2201116N GH7686 |
| Operating Force: | 5.761 ~ 17gfm |
| Number of Positions: | 16 |
| Number of Poles per Deck: | 1 |
| Number of Decks: | 1 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Continuous |
| Features: | - |
| Detailed Description: | Rotary Switch 16 Position SP16T 150mA (AC), 200mA (DC) 115VAC Panel Mount |
| Depth Behind Panel: | 18.77mm |
| Current Rating: | 150mA (AC), 200mA (DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | - |
| Contact Finish: | Gold |
| Circuit per Deck: | SP16T |
| Angle of Throw: | 22.5° |
| Actuator Type: | Flatted (3.17mm Dia) |
| Actuator Length: | 9.53mm |
| Email: | info@cjjhk.com |
Introduce
We can supply 51A22-01-1-16N, use the request quote form to request 51A22-01-1-16N pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 51A22-01-1-16N.The price and lead time for 51A22-01-1-16N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 51A22-01-1-16N.We look forward to working with you to establish long-term relations of cooperation
